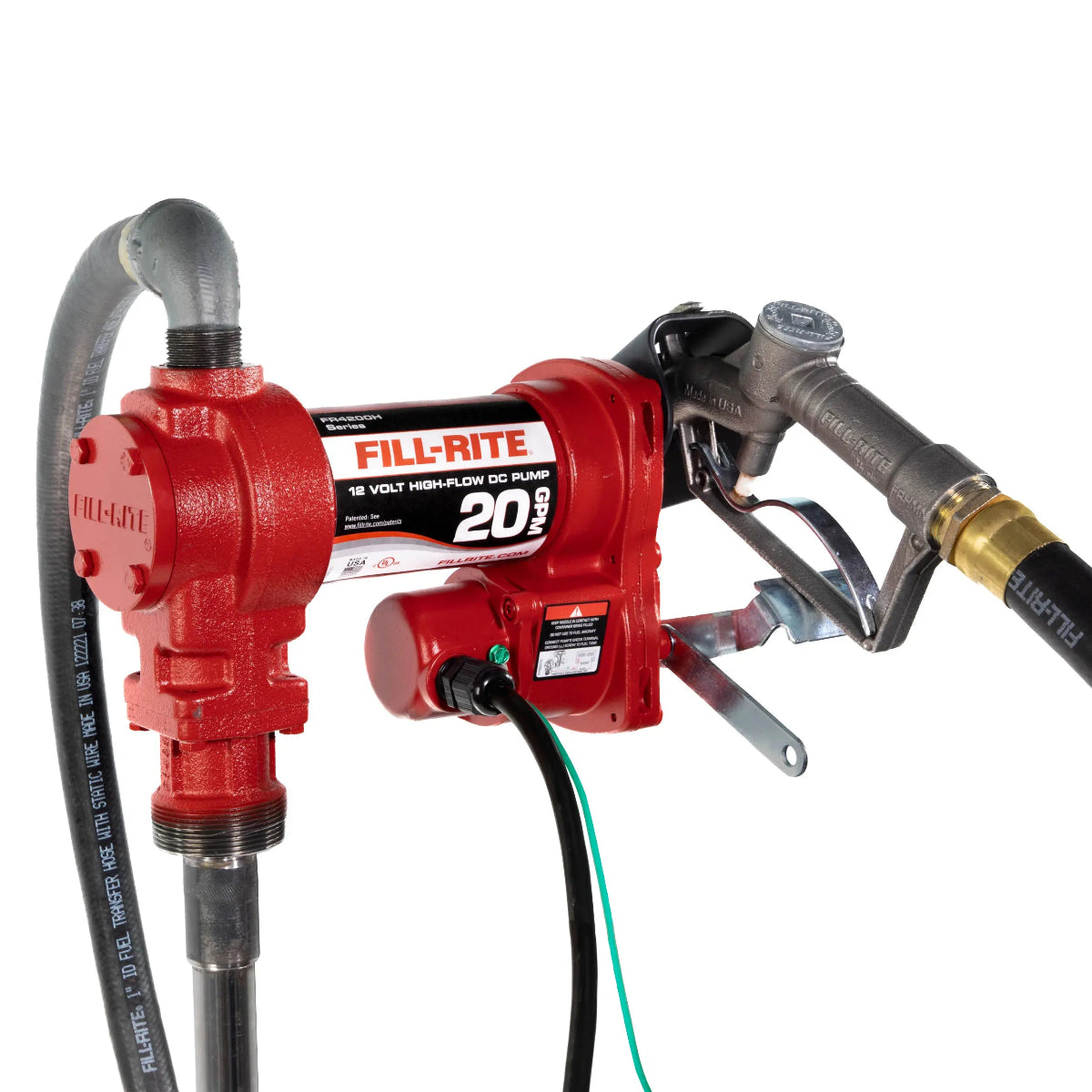

Fill-Rite FR4210H 12V DC Heavy-Duty Fuel Transfer Pump System

The Fill-Rite 4200 Series heavy-duty fuel transfer pumps are built for long-lasting performance and easy installation. Featuring rugged cast iron construction and a rotating junction box for flexible wiring, these pumps are designed to handle demanding fuel transfer applications in the field or on the jobsite.

The FR4210H is a 12V DC fuel transfer pump capable of delivering up to 20 GPM (75 LPM). This complete pump package includes a discharge hose, manual nozzle, telescoping suction pipe, and installation accessories for quick setup on transfer tanks and fuel storage systems.

Features

• Heavy-Duty Cast Iron Construction – Built to withstand harsh environments while providing exceptional durability and corrosion resistance.

• Reliable Rotary Vane Technology – Delivers up to 20 GPM, making it ideal for fueling equipment with tanks ranging from 20 to 80 gallons.

• Perfect for Mobile Tanks – Powered by a 12V DC motor and designed for installation on transfer tanks mounted to trucks and service vehicles.

• Wide Fluid Compatibility – Compatible with diesel, kerosene, biodiesel blends up to B20, gasoline blends up to E15, and mineral spirits.

• Easy Installation – Adjustable electrical junction box rotates 180° for simplified wiring and installation in tight spaces.

• Thermal Motor Protection – Built-in thermal overload protection helps prevent overheating and extends motor life.

• Integrated Equipment Protection – Internal strainer filters contaminants before they reach pumps and equipment.

• Heavy-Duty On/Off Switch – Metal stop-arm design improves durability and reduces wear from repeated operation.

• Limited Lifetime Warranty – Backed by Fill-Rite’s industry-leading limited lifetime warranty.

Performance Specifications

• Maximum Flow Rate: 20 GPM (75 LPM)

• Power Type: 12V DC

• Compatible Fluids:

  • Diesel Fuel

  • Kerosene

  • Biodiesel up to B20

  • Gasoline up to E15

  • Mineral Spirits

• Inlet Connection: 1" Female NPT

• Outlet Connection: 1" Female NPT

• Mount Type: 2" NPT Bung Mount

• Duty Cycle: 30 Minutes On / 30 Minutes Off

• Motor Power: 0.25 HP

• Maximum Current Draw: 19 A

• Thermal Protection: Yes

• Self-Priming: Yes

• Suction Lift: 8 ft

• Dry Vacuum: 5 in. Hg

• Maximum Discharge Head: 37 ft

• Filter Screen Size: 20 x 20 Micron Mesh

• Maximum Operating Pressure: 16 PSI

• Viscosity Range: 1 to 4 cSt

Included Accessories

• 20" – 34.5" Telescoping Steel Suction Pipe

• 1" x 12' Discharge Hose with Static Ground Wire

• 1" Cast Aluminum Manual Nozzle

• Nozzle Boot

• PTFE Thread Seal Tape

• 1" NPT Street Elbow

• Ground Wire

• Cable Gland

• (2) Wire Nuts

• Lock Nut

• Mounting Screw

Electrical Specifications

• Cable Length: 18 ft

• Wire Gauge: 12 AWG

• Connection Type: Bare Wire Leads

• Ground Wire Included: Yes

Applications

• Transfer Tanks

• Fleet Fueling

• Agricultural Equipment

• Construction Equipment

• Service Trucks

• Fuel Storage Systems

Built for Reliability

Engineered for professional fuel transfer applications, the Fill-Rite FR4210H combines rugged cast iron construction, proven rotary vane technology, and advanced motor protection to deliver years of dependable service in demanding environments.

Dimensions

• Product Dimensions (H × W × D): 8.4" × 13.7" × 6.5"

• Product Weight: 32.2 lbs

• Package Dimensions (H × W × D): 10.63" × 15.44" × 18.31"

• Gross Weight: 35.0 lbs
