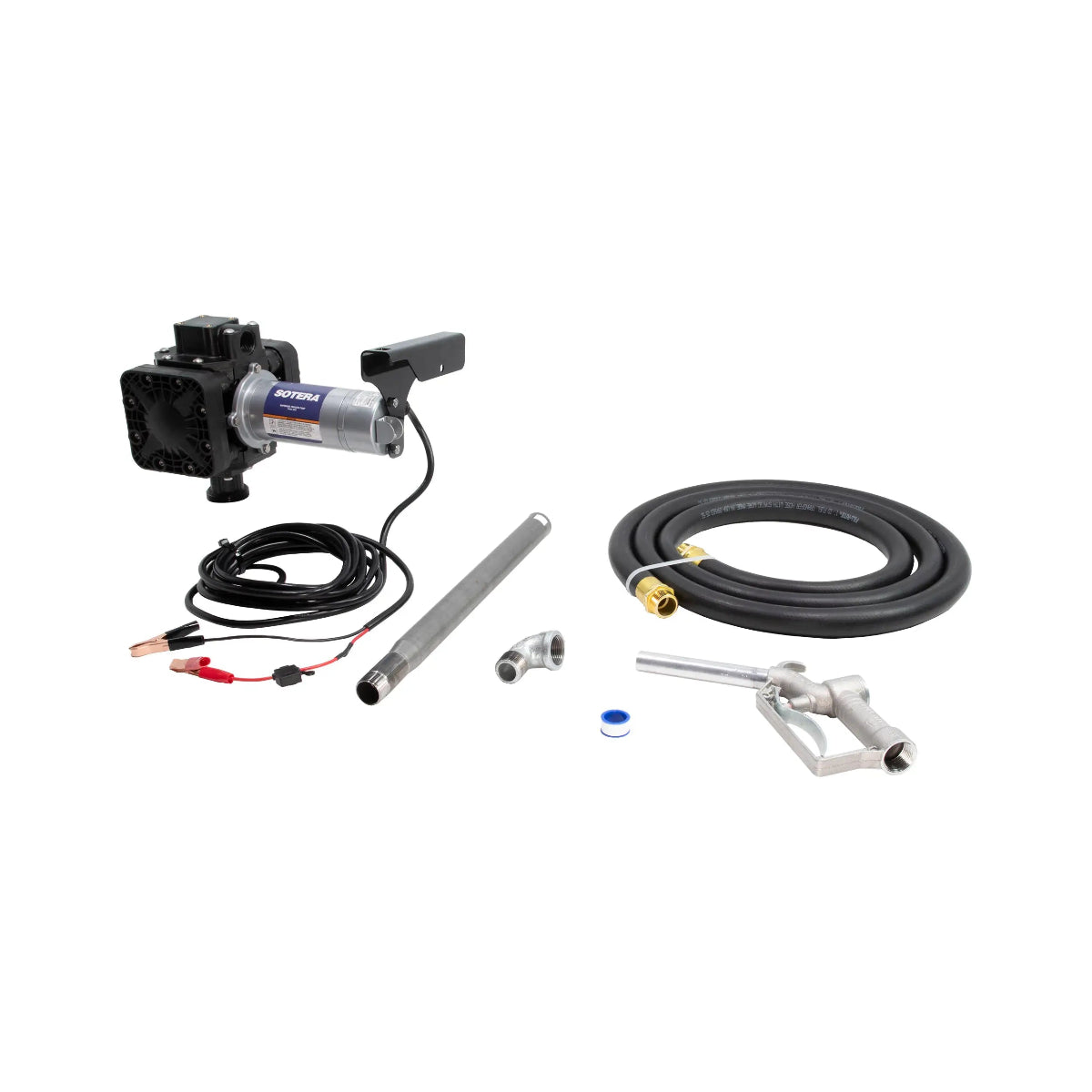

Sotera FR410B 12V DC Chemical Transfer Pump System

Manufactured with Hytrel® diaphragms and NBR seals, the Sotera FR410B is designed for transferring petroleum-based fluids, fuels, oils, and a variety of agricultural and industrial chemicals. Built for durability and dependable performance, this pump system is ideal for demanding fluid transfer applications.

The FR410B is a 12V DC chemical transfer pump system featuring a metal bung mount, polypropylene suction tube, and additional chemical transfer fittings. Designed with dual-diaphragm technology, it delivers consistent flow and pressure while providing long service life in challenging environments.

Features

• Reliable Performance – Dual-diaphragm design maintains consistent outlet pressure regardless of load conditions.

• Wide Fluid Compatibility – Hytrel® diaphragms are compatible with a broad range of fluids, including agricultural chemicals, herbicides, fertilizers, mild acids, soaps, water, oils, fuels, and petroleum-based fluids.

• Run-Dry Protection – Pump can operate dry without causing internal damage, helping protect your investment.

• Thermal Motor Protection – Built-in thermal overload protection helps prevent overheating and extends pump life.

• Flexible Installation Options – Available in multiple configurations including Chemtraveller®, Mix-N-Go, Pump-N-Go, IBC tote mounts, steel drum mounts, and straight flange installations.

• 5-Year Warranty – Backed by Sotera's comprehensive 5-year warranty for added confidence and long-term reliability.

Performance Specifications

• Maximum Flow Rate: 13 GPM

• Power Type: 12V DC

• Inlet Connection: 1" Female NPT

• Outlet Connection: 1" Female NPT

• Mount Type: Bung Mount

• Duty Cycle: 30 Minutes On / 30 Minutes Off

• Motor Power: 0.25 HP

• Suction Lift: 9 ft

• Maximum Operating Pressure: 15 PSI

• Discharge Head: 38 ft

• Maximum Current Draw: 20 A

Included Components

• Metal Bung Mount

• Polypropylene Suction Tube

• Chemical Transfer Fittings

Applications

• Petroleum-Based Fluids

• Diesel Fuel Transfer

• Oil Transfer

• Agricultural Chemicals

• Herbicides

• Fertilizers

• Mild Acids

• Industrial Fluid Handling

Built for Reliability

Sotera transfer systems are engineered for dependable performance in agricultural, industrial, and commercial fluid transfer applications. Built with high-quality materials and protected by thermal overload technology, the FR410B delivers long-lasting service and reliable operation.

Dimensions

• Product Dimensions (H × W × D): 11" × 15.5" × 8.25"

• Product Weight: 21.9 lbs

• Package Dimensions (H × W × D): 16.5" × 20.25" × 16.25"

• Gross Weight: 35.3 lbs
