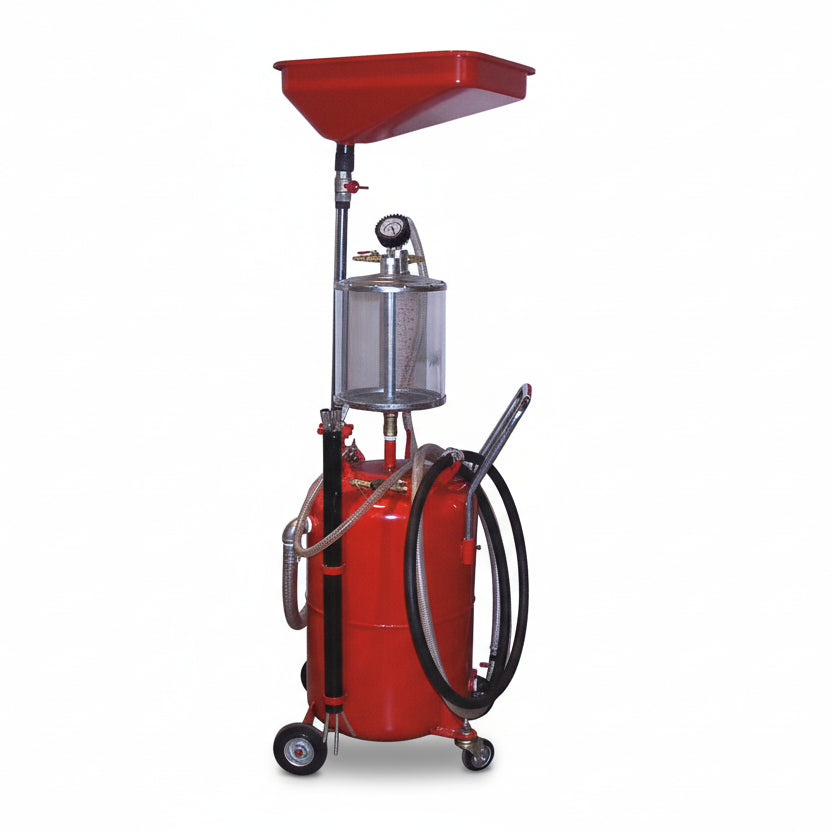

MULTI-FUNCTIONAL: DRAINING, COLLECTING AND FILLING OIL

• Can Be Used To Drain, Collect and Fill Oil Easily And Conveniencely In Low Pressure.
• This Oil Drainer Makes Use Of Compressed Air As Power To Produce Vaccum Actions In Order to Achieve Its Draining and Collecting Functions.
• It Is A Safe, Convenient and Fast Machine. It Will Never Bring Spark.
• This Machine Can Be Used In Garage, Bodyshop and Mechanical Workshop, etc.
• Equipped With Wheels and Swivels For Portability.
• Features Outside-Layed Cursor to Show The Exact Amount of Oil.
• Adjustable Oil Tray Adapts to Any Types of Cars.
• Each Machine Is Equipped With Different Specifications of Nozzles.
• Features Transparent Visual Measuring Cup.
• The Tool Tray Can Be Disassembled.

Specification:

• Draining Speed: 0.6 - 1.6 L/min or 0.16 - 0.42 Gal/min
• Collecting Height: 1.85 m or 6 Ft.
• Work Pressure: 7-8 Ba
• Tank Capacity: 65L or 17 Gal
• Measuring Cup Capacity: 9L or 2.4 Gal
• Draining Pressure: 0.5 bar
• Length of Suction Pipe: 1.4 m or 4' 8 in.
• Length of Drain Pipe: 1.9 m or 6' 3 in.
• Total Draining Capacity: 40-50L or 10.6-13.2 Gal
• Total Weight: 32 Kg or 70.5 Lb
