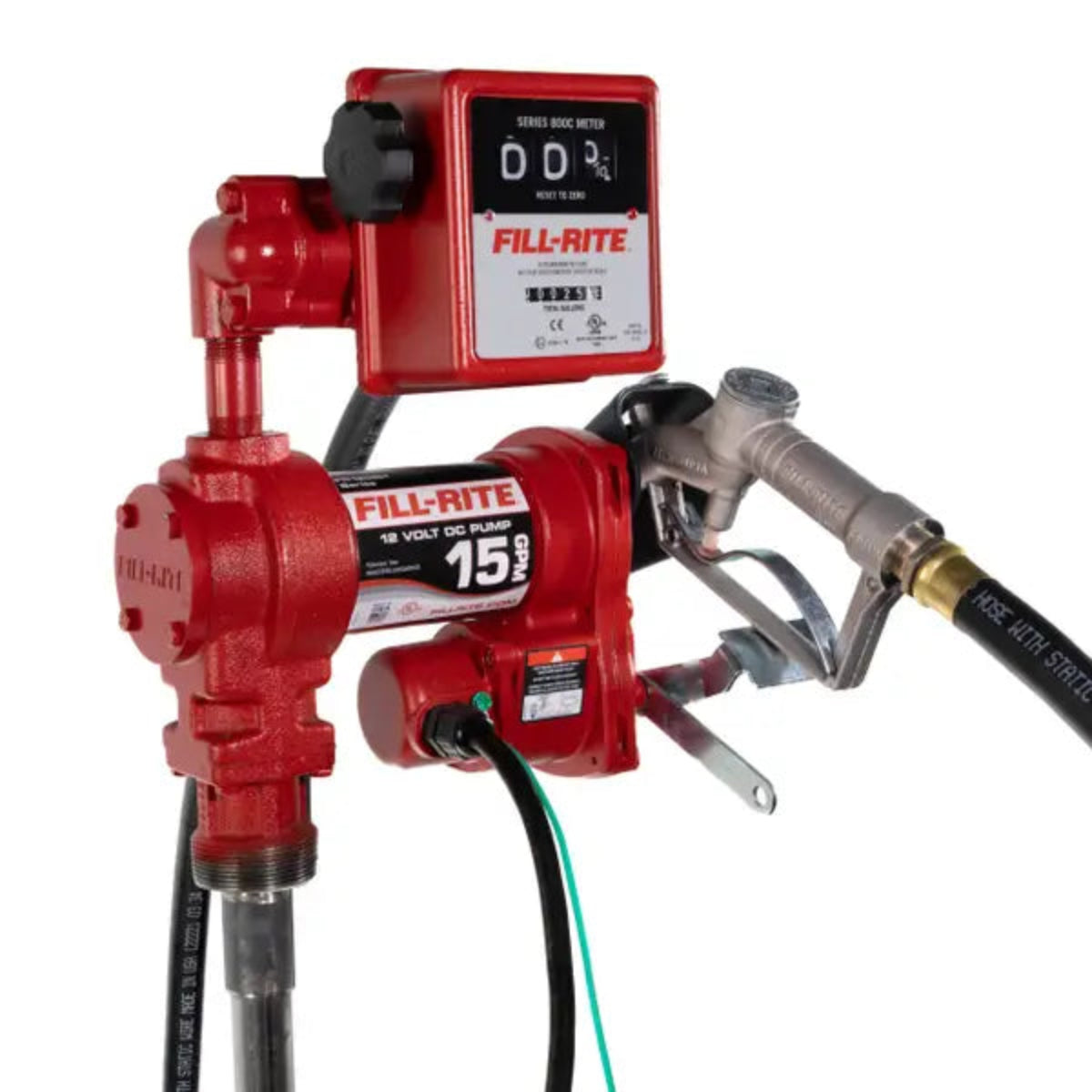

Fill-Rite FR1211H 12V DC Fuel Transfer Pump with Mechanical Meter

The Fill-Rite 1200 Series heavy-duty fuel transfer pumps are built for dependable performance, simple installation, and long service life. Featuring rugged cast iron construction and a rotating electrical junction box, these pumps are designed to handle demanding fuel transfer applications in agricultural, commercial, and industrial environments.

The FR1211H is a 12V DC fuel transfer pump capable of delivering up to 15 GPM (57 LPM). This complete system includes a mechanical fuel meter, discharge hose, manual nozzle, telescoping suction pipe, and installation hardware for a ready-to-use fueling solution.

Features

• Heavy-Duty Cast Iron Construction – Built to withstand harsh working environments while delivering exceptional durability and corrosion resistance.

• Reliable Rotary Vane Technology – Provides up to 15 GPM of flow, making it ideal for fueling equipment with tanks ranging from 15 to 60 gallons.

• Designed for Mobile Fuel Tanks – Powered by a 12V DC motor and equipped with a standard 2" bung mount for installation on transfer tanks and service trucks.

• Wide Fluid Compatibility – Suitable for diesel, gasoline blends up to E15, biodiesel blends up to B20, kerosene, and mineral spirits.

• Easy Installation – Adjustable electrical junction box rotates 180° for flexible wiring and easier installation in confined spaces.

• Thermal Motor Protection – Integrated thermal overload protection helps prevent overheating and extends pump life.

• Built-In Strainer – Internal mesh strainer helps prevent contaminants from entering fuel systems and damaging equipment.

• Heavy-Duty Switch Design – Metal stop-arm switch construction provides long-term durability and reliable operation.

• Limited Lifetime Warranty – Backed by Fill-Rite’s industry-leading limited lifetime warranty.

Performance Specifications

• Maximum Flow Rate: 15 GPM (57 LPM)

• Power Type: 12V DC

• Compatible Fluids:

  • Diesel Fuel

  • Kerosene

  • Biodiesel up to B20

  • Gasoline up to E15

  • Mineral Spirits

• Inlet Connection: 1" Female NPT

• Outlet Connection: 3/4" Female NPT

• Mount Type: 2" NPT Bung Mount

• Duty Cycle: 30 Minutes On / 30 Minutes Off

• Motor Power: 0.25 HP

• Maximum Current Draw: 20 A

• Thermal Protection: Yes

• Self-Priming: Yes

• Suction Lift: 8 ft

• Dry Vacuum: 5 in. Hg

• Maximum Discharge Head: 37 ft

• Strainer Mesh Size: 20 x 20 Micron

• Maximum Operating Pressure: 16 PSI

• Viscosity Range: 1 – 4 cSt

Meter Specifications

• Model: 807C Mechanical Meter

• Display Type: Mechanical

• Display Digits: 3

• Accuracy: ±1%

• Repeatability: ±0.38%

• Totalizer: Mechanical Gallon Register

Included Accessories

• 807C Mechanical Fuel Meter (Gallons)

• 20" – 34.5" Telescoping Steel Suction Pipe

• 3/4" x 12' Discharge Hose with Static Ground Wire

• 3/4" Cast Aluminum Manual Nozzle

• Nozzle Boot

• Meter Reset Knob

• (2) PTFE Thread Seal Tape Rolls

• 3/4" NPT Street Elbow

• 3/4" x 2.5" Pipe Nipple

• Ground Wire

• Cable Gland

• (2) Wire Nuts

• Lock Nut

• Mounting Screw

Electrical Specifications

• Cable Length: 18 ft

• Wire Gauge: 12 AWG

• Connection Type: Bare Wire Leads

• Ground Wire Included: Yes

Applications

• Transfer Tanks

• Service Trucks

• Agricultural Equipment

• Construction Equipment

• Fleet Fueling

• Fuel Storage Systems

Built for Reliability

The Fill-Rite FR1211H combines rugged cast iron construction, proven rotary vane pump technology, and integrated mechanical fuel metering into one dependable fueling solution. Designed for professional users who require accurate fuel tracking and reliable performance in demanding environments.

Dimensions

• Product Dimensions (H × W × D): 15.0" × 13.0" × 7.0"

• Product Weight: 33.5 lbs

• Package Dimensions (H × W × D): 10" × 21.81" × 19.81"

• Gross Weight: 37.0 lbs
