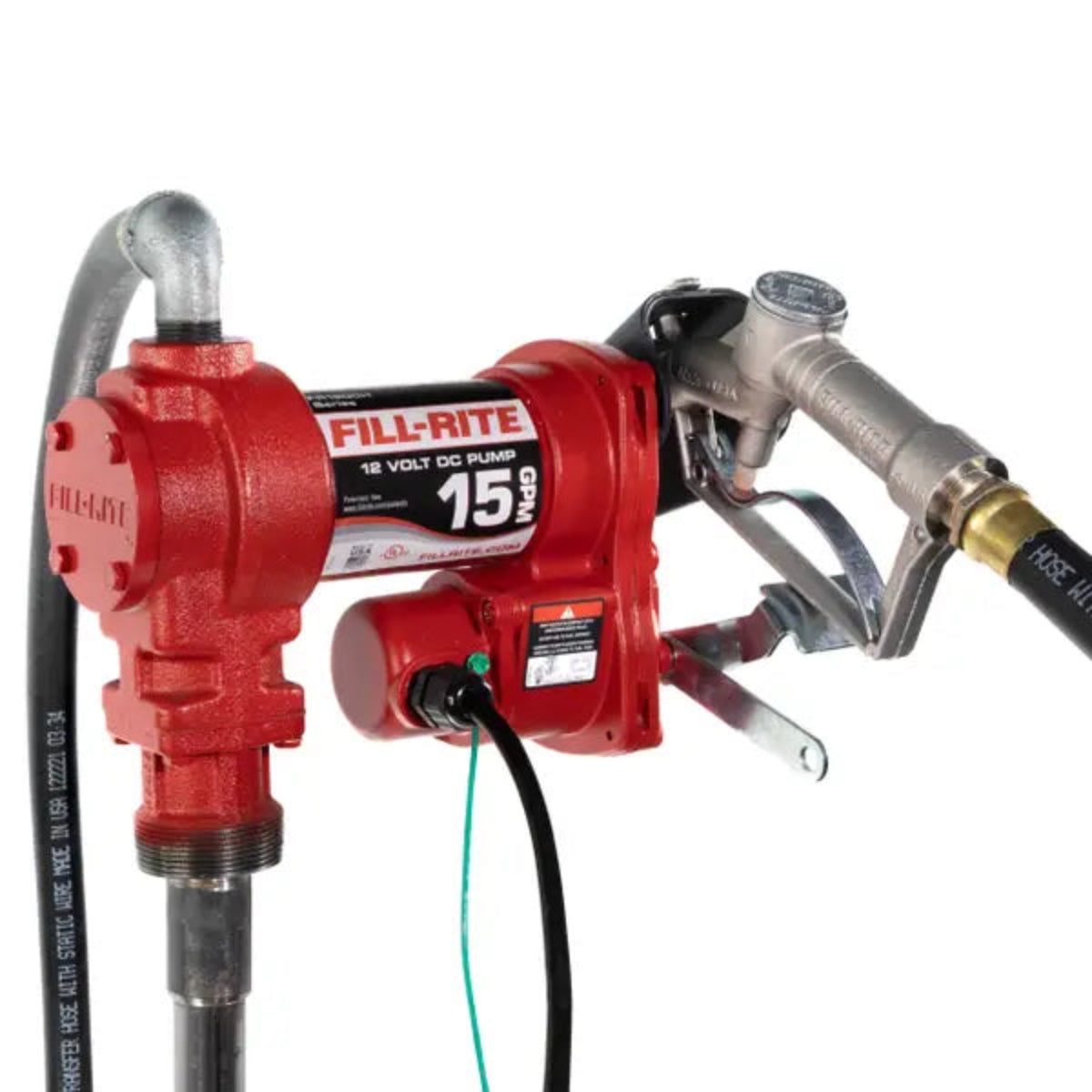

Fill-Rite FR1210H 12V DC Heavy-Duty Fuel Transfer Pump

The Fill-Rite FR1210H is a heavy-duty 12V DC fuel transfer pump engineered for reliable fuel transfer in mobile fueling applications. Featuring rugged cast iron construction and proven rotary vane technology, this pump delivers up to 15 GPM (57 LPM), making it ideal for fueling equipment, vehicles, and machinery directly from transfer tanks.

This complete package includes a discharge hose, manual nozzle, telescoping suction pipe, and installation components for a ready-to-install fueling solution.

Features

• Heavy-Duty Cast Iron Construction – Built to withstand harsh environments and demanding daily use.

• Reliable Rotary Vane Technology – Delivers consistent fuel flow and dependable long-term performance.

• High Flow Capacity – Pumps up to 15 GPM (57 LPM), ideal for equipment with fuel tanks ranging from 15 to 60 gallons.

• 12V DC Operation – Designed for connection to standard 12-volt battery systems.

• Mobile Tank Installation – Features a 2" NPT bung mount for transfer tanks and truck-mounted fuel systems.

• 180° Rotating Junction Box – Simplifies wiring and installation in confined spaces.

• Thermal Motor Protection – Helps prevent overheating and extends pump life.

• Integrated Strainer Protection – Filters contaminants before they reach equipment fuel systems.

• Heavy-Duty On/Off Switch – Reinforced metal stop arm helps prevent premature wear.

• Lifetime Limited Warranty – Backed by Fill-Rite’s industry-leading limited lifetime warranty.

Performance Specifications

• Model: FR1210H

• Maximum Flow Rate: 15 GPM (57 LPM)

• Power Type: 12V DC

• Motor Power: 0.25 HP

• Maximum Current Draw: 20 A

• Duty Cycle: 30 Minutes On / 30 Minutes Off

• Inlet Connection: 1" Female NPT

• Outlet Connection: 3/4" Female NPT

• Mounting Type: 2" NPT Bung Mount

• Self-Priming: Yes

• Thermal Protection: Yes

• Suction Lift: 8 ft

• Dry Vacuum: 5 in. Hg

• Discharge Head: 37 ft

• Maximum Operating Pressure: 16 PSI

• Strainer Mesh Size: 20 x 20 Micron

• Viscosity Range: 1 – 4 cSt

Compatible Fluids

• Diesel Fuel

• Gasoline up to E15

• Biodiesel up to B20

• Kerosene

• Mineral Spirits

Included Components

• 20" – 34.5" Steel Telescoping Suction Pipe

• 3/4" x 12' Fuel Hose with Static Ground Wire

• 3/4" Cast Aluminum Manual Nozzle

• 18' Power Cable

• Installation Hardware

Electrical Specifications

• Cable Length: 18 ft

• Cable Gauge: 12 AWG

• Cable Connection: Bare Leads

Benefits

• Complete Ready-to-Install Fuel Transfer Package

• Reliable Self-Priming Operation

• Ideal for Mobile Fuel Tanks

• Durable Cast Iron Construction

• Easy Installation and Maintenance

• Long Service Life

• Suitable for Fleet, Agricultural, Construction, and Industrial Applications

• Built-In Protection Against Fuel Contamination

Applications

• Mobile Fuel Transfer Tanks

• Service Trucks

• Construction Equipment

• Agricultural Equipment

• Fleet Maintenance

• Fuel Storage Systems

• Off-Road Equipment

• Commercial Fueling Operations

Built for Reliability

The Fill-Rite FR1210H combines proven rotary vane pump technology with rugged cast iron construction to deliver dependable fuel transfer performance in demanding environments. Its self-priming design, thermal protection, and integrated filtration system help ensure years of reliable operation while protecting valuable equipment from fuel contamination.

Dimensions

• Product Dimensions (H × W × D): 8.4" × 13.0" × 6.5"

• Product Weight: 29.1 lbs

• Package Dimensions (H × W × D): 10.63" × 15.44" × 18.31"

• Gross Weight: 32.0 lbs
