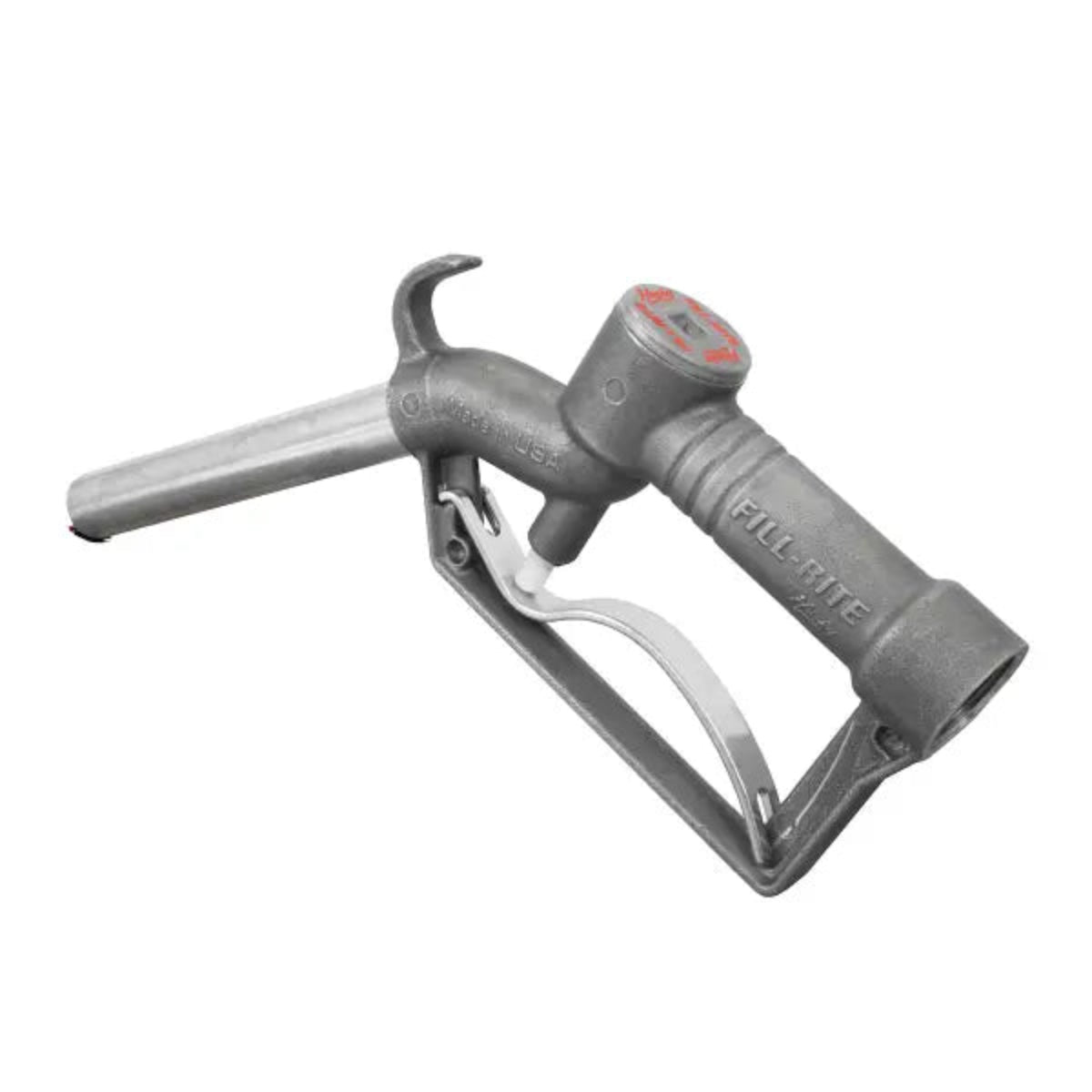

Fill-Rite FRHMN100S 1" Manual Fuel Transfer Nozzle

The Fill-Rite FRHMN100S is a heavy-duty 1" manual fuel transfer nozzle designed for demanding fuel dispensing applications. Constructed from rugged cast aluminum and equipped with a large 1-3/16" diesel spout, this nozzle is built to provide reliable performance and long service life in commercial, agricultural, and industrial environments.

Its simple manual operation, durable construction, and high-flow capability make it an ideal solution for fuel transfer systems where automatic shutoff is not required.

Features

• Heavy-Duty Cast Aluminum Construction – Built with durable cast aluminum to withstand daily use in demanding environments.

• High-Flow Design – Supports fuel transfer rates up to 40 GPM for fast and efficient fueling.

• Large Diesel Spout – Equipped with a 1-3/16" spout designed for diesel fueling applications.

• Manual Operation – Provides direct operator control during fueling.

• Commercial-Grade Durability – Engineered for long-term performance in industrial and fleet fueling applications.

Performance Specifications

• Model: FRHMN100S

• Nozzle Type: Manual Fuel Transfer Nozzle

• Maximum Flow Rate: 40 GPM (151 LPM)

• Compatible Fluids:

  • Diesel Fuel

  • Gasoline

  • Kerosene

  • Biodiesel up to B20

  • Ethanol Blends up to E15

• Inlet Connection: 1" Female NPT

• Spout Diameter: 1.18"

• Maximum Operating Pressure: 50 PSI

• Operation Type: Manual

Benefits

• Fast Fuel Transfer Performance

• Durable Cast Aluminum Construction

• Simple and Reliable Operation

• Suitable for Multiple Fuel Types

• Low Maintenance Design

• Built for Long Service Life

Applications

• Fuel Transfer Pumps

• Service Trucks

• Agricultural Equipment

• Construction Equipment

• Fleet Fueling Systems

• Fuel Storage Tanks

• Industrial Fuel Transfer Operations

Built for Reliability

The Fill-Rite FRHMN100S is designed to deliver dependable fuel transfer performance in demanding environments. Its rugged cast aluminum construction and high-flow capability make it an excellent choice for operators who require a durable manual nozzle for everyday fueling applications.

Dimensions

• Product Dimensions (H × W × D): 11.2" × 1.6" × 8.1"

• Product Weight: 1.1 lbs

• Package Dimensions (H × W × D): 5.5" × 15.5" × 19.5"

• Gross Weight: 1.03 lbs
