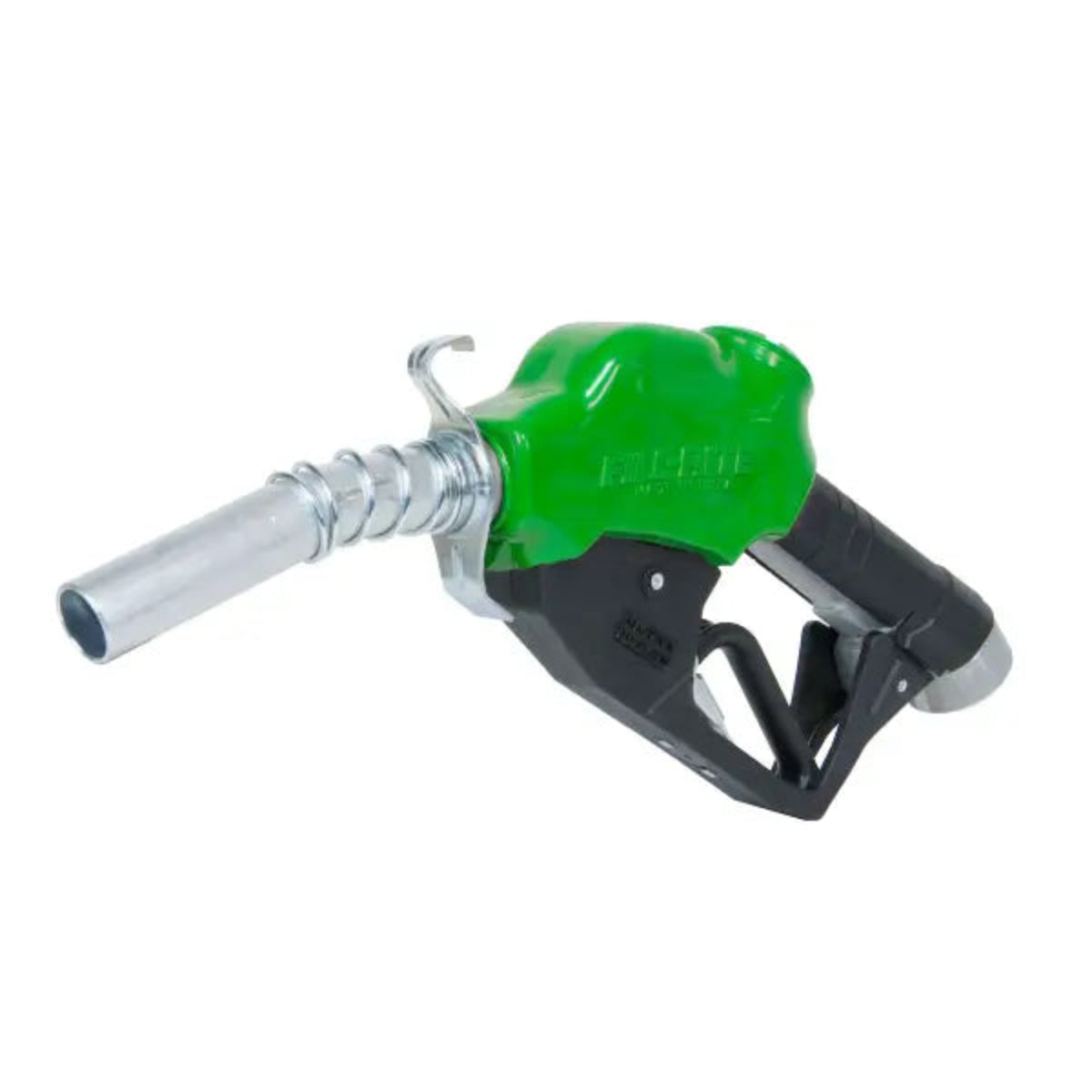

Fill-Rite N100DAU13G 1" Ultra High-Flow Automatic Diesel Nozzle

The Fill-Rite N100DAU13G is a 1" ultra high-flow automatic fuel transfer nozzle designed for demanding diesel fueling applications. Equipped with a large 1-3/16" diesel spout and green nozzle cover, this model delivers fast fueling performance while providing automatic shutoff protection to help prevent overfills and spills.

Constructed from heavy-duty cast aluminum, the N100DAU13G is engineered to withstand harsh operating environments and continuous commercial use.

Features

• Ultra High-Flow Performance – Delivers flow rates up to 40 GPM for fast and efficient fueling.

• Automatic Shutoff – Automatically stops fuel flow when the tank reaches capacity, helping prevent spills and overfilling.

• Heavy-Duty Cast Aluminum Construction – Built for maximum durability and long service life in demanding applications.

• Adjustable Flow Control – Three latch positions allow operators to control fueling speed based on application requirements.

• Spout Spring Included – Helps protect equipment by maintaining proper nozzle positioning during fueling.

• Diesel-Specific Design – Equipped with a large diesel spout and green cover for easy identification.

Performance Specifications

• Model: N100DAU13G

• Nozzle Type: 1" Ultra High-Flow Automatic Diesel Nozzle

• Maximum Flow Rate: 40 GPM (151 LPM)

• Compatible Fluids:

  • Diesel Fuel

  • Gasoline

  • Kerosene

  • Biodiesel up to B20

  • Ethanol Blends up to E15

• Inlet Connection: 1" Female NPT

• Spout Diameter: 1.1875"

• Maximum Operating Pressure: 50 PSI

• Shutoff Type: Automatic

Benefits

• Faster Fueling Times

• Reduced Risk of Overfills

• Heavy-Duty Commercial Construction

• Improved Operator Safety

• Reliable Automatic Shutoff Operation

• Ideal for High-Volume Fuel Transfer Systems

Applications

• Fuel Transfer Pumps

• Fleet Fueling Operations

• Agricultural Equipment

• Construction Equipment

• Service Trucks

• Fuel Storage Tanks

• Commercial Fuel Dispensing Systems

Important Note

• Fill-Rite automatic shutoff nozzles are not designed for use in gravity-flow fuel systems.

Built for Reliability

The Fill-Rite N100DAU13G combines ultra high-flow performance with dependable automatic shutoff technology, making it an ideal solution for commercial, agricultural, industrial, and fleet fueling applications where speed, durability, and safety are critical.

Dimensions

• Product Dimensions (H × W × D): 9.7" × 2.2" × 17.1"

• Product Weight: 4 lbs

• Package Dimensions (H × W × D): 4" × 9.25" × 18"

• Gross Weight: 3.93 lbs
