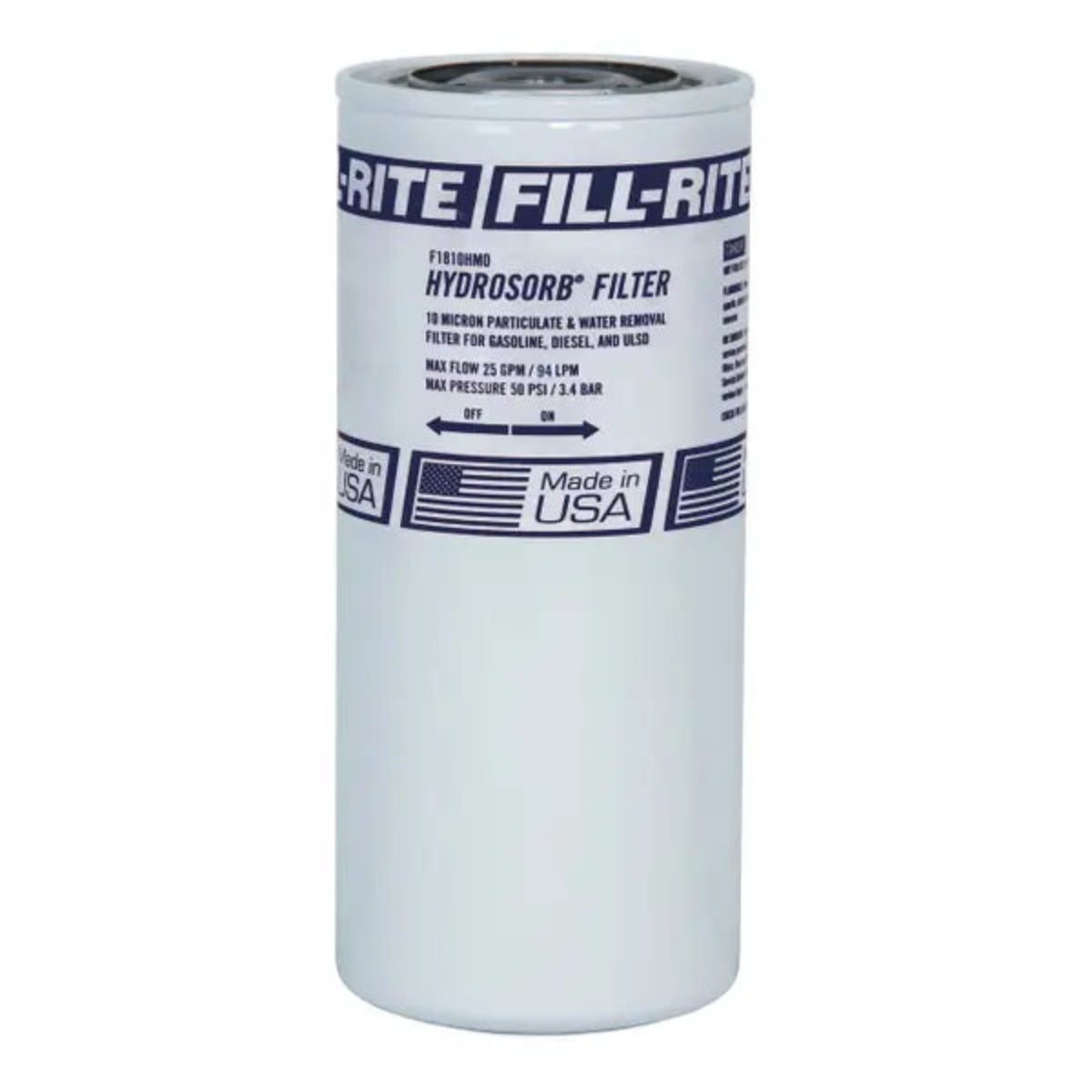

Fill-Rite F1810HM0 Hydrosorb® Fuel Transfer Filter

The Fill-Rite F1810HM0 is a Hydrosorb® fuel transfer filter designed to remove particulate contamination while detecting and absorbing water from fuel systems. Engineered for flow rates up to 25 GPM (94 LPM), this filter helps protect pumps, injectors, engines, and fuel storage systems from damage caused by dirt, rust, sediment, microbial growth, and water contamination.

Featuring 10-micron filtration and water-absorbing media, the F1810HM0 provides superior fuel protection for commercial, agricultural, fleet, and industrial fueling applications.

Features

• Hydrosorb® Water Detection Technology – Detects and absorbs water before it reaches fuel system components.

• 10-Micron Filtration – Removes dirt, rust, sediment, and other particulate contaminants.

• Equipment Protection – Helps extend the service life of pumps, injectors, engines, and fuel transfer equipment.

• Microbial Growth Prevention – Helps reduce conditions that promote microbial contamination and fuel degradation.

• Improved Fuel Quality – Maintains cleaner fuel for more reliable equipment performance.

• Direct Replacement Filter – Compatible with Fill-Rite filter head assemblies 1200KTG9075 and 1200KTG9100.

Performance Specifications

• Maximum Flow Rate: 25 GPM (94 LPM)

• Compatible Fluids:

  • Diesel Fuel

  • Gasoline

  • Biodiesel up to B20

  • Ethanol Blends up to E15

• Filter Rating: 10 Micron

• Filter Function: Hydrosorb® Water Detection & Particulate Filtration

• Inlet Connection: 1" Female NPT

• Maximum Operating Pressure: 50 PSI

• Filter Thread Size: 1"-12 UNF

Compatible Filter Heads

• Fill-Rite 1200KTG9075

• Fill-Rite 1200KTG9100

Filtration Benefits

• Detects and Absorbs Water

• Removes Dirt and Sediment

• Filters Rust and Corrosion Particles

• Helps Prevent Fuel System Damage

• Reduces Microbial Contamination Risks

• Improves Fuel Storage Quality

• Enhances Equipment Reliability

Maintenance Recommendation

For maximum protection and performance, Fill-Rite recommends replacing fuel filters every six months, depending on fuel quality and operating conditions.

Applications

• Fuel Transfer Pumps

• Service Trucks

• Fleet Fueling Systems

• Agricultural Equipment

• Construction Equipment

• Fuel Storage Tanks

• Commercial Fuel Dispensing Systems

Dimensions

• Product Dimensions (H × W × D): 3.7" × 3.7" × 8.6"

• Product Weight: 1.7 lbs

• Package Dimensions (H × W × D): 1.7" × 3.7" × 8.6"

• Gross Weight: 1.5 lbs
