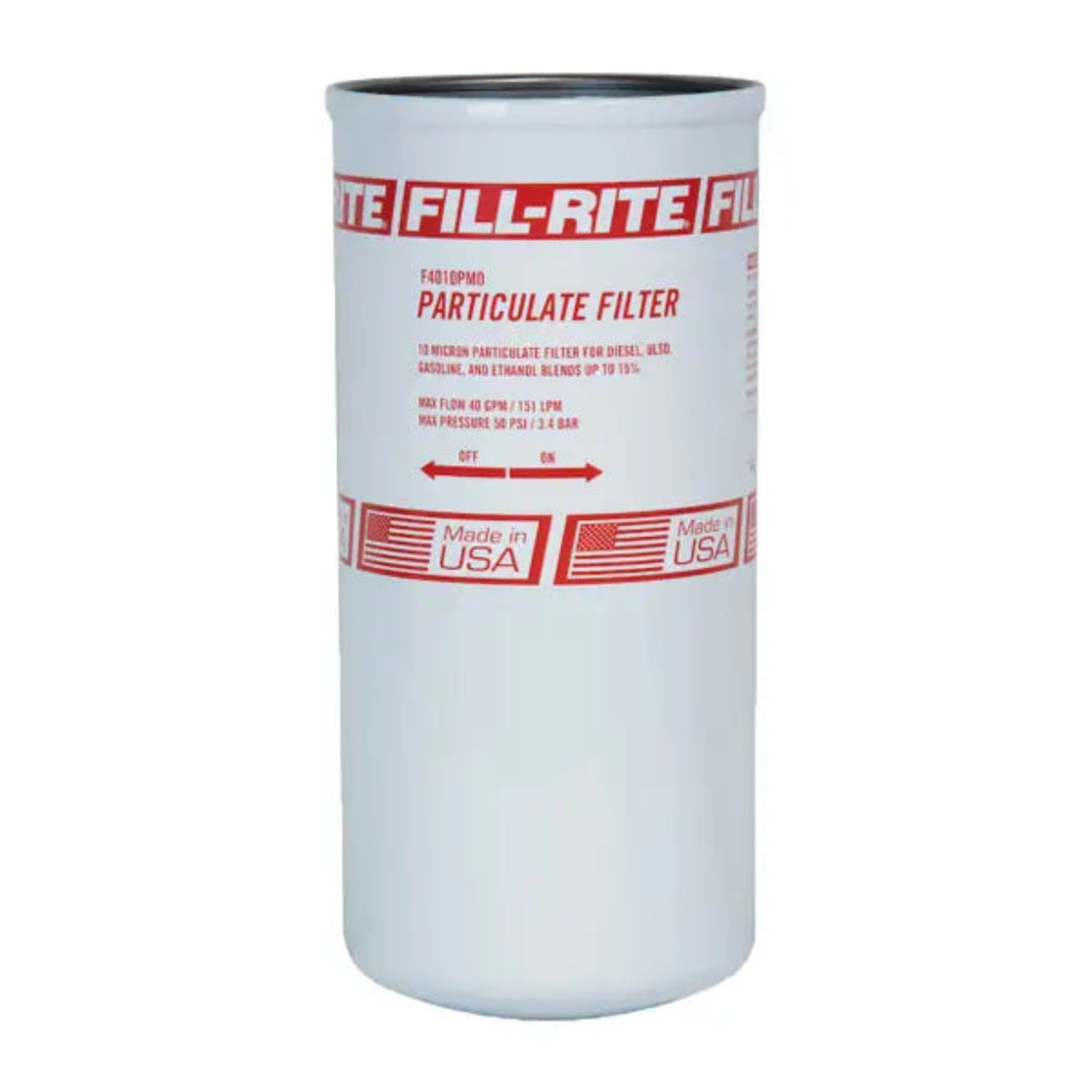

Fill-Rite F4010PM0 Fuel Transfer Particulate Filter

The Fill-Rite F4010PM0 is a high-capacity fuel transfer filter designed to remove particulate contamination from fuel systems operating at flow rates up to 40 GPM (151 LPM). This filter captures particles as small as 10 microns, helping protect pumps, meters, injectors, engines, and other fuel system components from damage caused by dirt, rust, sediment, and corrosion.

Designed for use with the Fill-Rite 700ACCF7017 filter head, the F4010PM0 features 1.5"-16 UNF filter threads and is suitable for a wide range of commercial and industrial fuel transfer applications.

Features

• 10-Micron Particulate Filtration – Removes dirt, rust, sediment, and corrosion particles from fuel.

• Equipment Protection – Helps extend the life of pumps, engines, injectors, and fuel transfer equipment.

• High Flow Capacity – Supports fuel transfer systems operating up to 40 GPM (151 LPM).

• Broad Fuel Compatibility – Suitable for diesel fuel, gasoline, biodiesel blends up to B20, and ethanol blends up to E15.

• Heavy-Duty Construction – Designed for demanding commercial, agricultural, fleet, and industrial fueling applications.

• Direct Replacement Filter – Compatible with the Fill-Rite 700ACCF7017 filter head assembly.

Performance Specifications

• Maximum Flow Rate: 40 GPM (151 LPM)

• Compatible Fluids:

  • Diesel Fuel

  • Gasoline

  • Biodiesel up to B20

  • Ethanol Blends up to E15

• Filter Rating: 10 Micron

• Filter Function: Particulate Filtration

• Filter Thread Size: 1.5"-16 UNF

• Maximum Operating Pressure: 50 PSI

• Compatible Filter Head: 700ACCF7017

Filtration Benefits

• Removes Dirt and Sediment

• Removes Rust and Corrosion Particles

• Helps Prevent Fuel System Damage

• Improves Fuel Cleanliness

• Supports Reliable Equipment Operation

• Reduces Maintenance Costs

Maintenance Recommendation

For optimal performance and protection, Fill-Rite recommends replacing fuel filters every six months, depending on fuel quality, operating conditions, and system usage.

Applications

• Commercial Fuel Transfer Systems

• Fleet Fueling Operations

• Agricultural Equipment

• Construction Equipment

• Fuel Storage Tanks

• Service Trucks

• Industrial Fuel Handling Systems

Dimensions

• Product Dimensions (H × W × D): 10.9" × 5.1" × 5.0"

• Product Weight: 3.1 lbs

• Package Dimensions (H × W × D): 10.9" × 5.1" × 5.0"

• Gross Weight: 3.1 lbs
