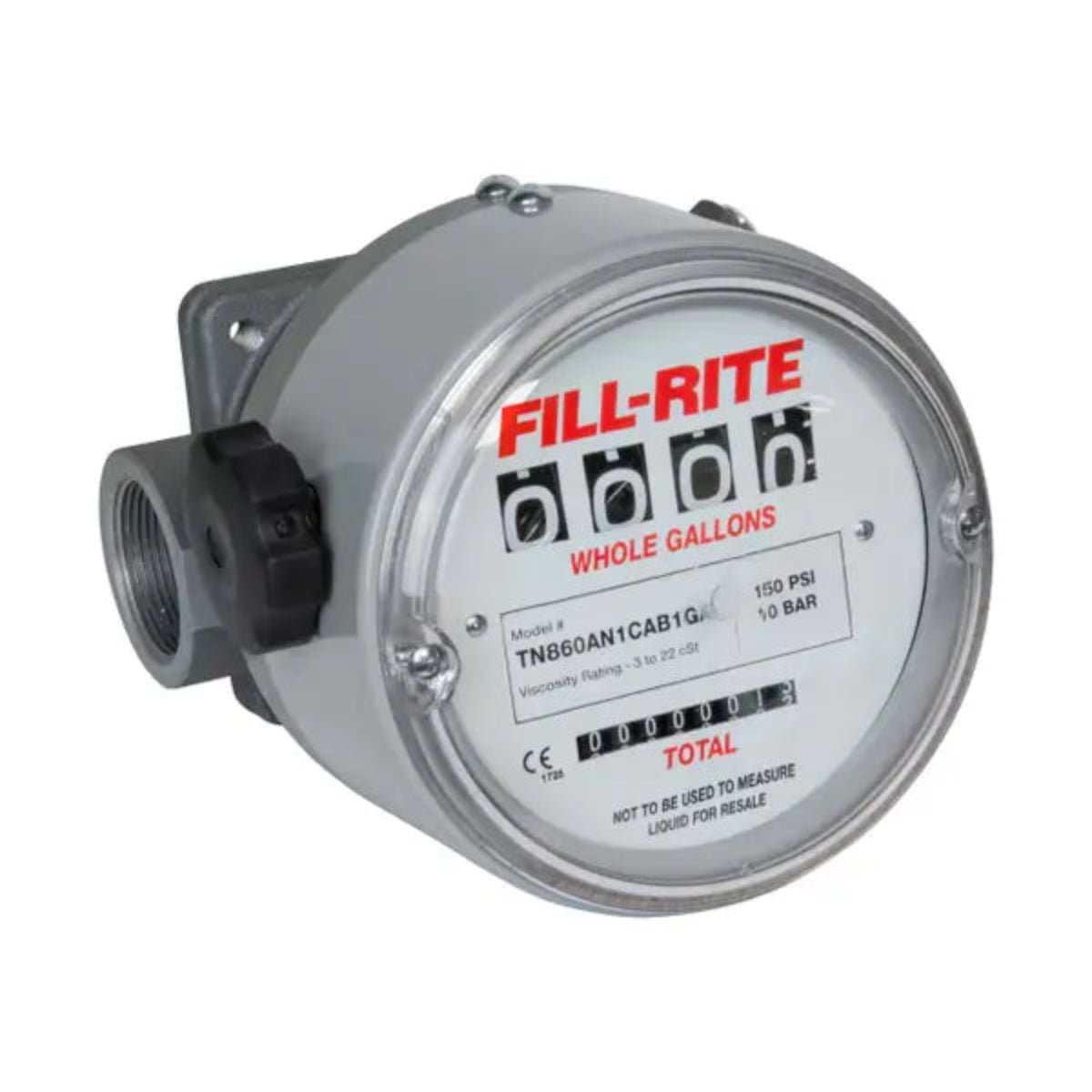

Fill-Rite TN860AN1CAB1GAC Mechanical Fuel Transfer Meter

The Fill-Rite TN860AN1CAB1GAC is a high-capacity mechanical fuel transfer meter designed for high-flow, high-pressure, and high-accuracy applications. Utilizing proven positive displacement nutating disc technology, this meter delivers reliable measurement performance in demanding fuel transfer environments.

Engineered for commercial, agricultural, industrial, and fleet fueling operations, the TN860AN1CAB1GAC accurately measures fuel flow rates from 6 to 60 GPM while maintaining an accuracy of ±2%. Its rugged construction is built to withstand harsh operating conditions and provide years of dependable service.

Features

• Positive Displacement Technology – Proven nutating disc design delivers dependable accuracy in unattended fuel transfer applications.

• High-Flow Performance – Accurately measures fuel transfer rates from 6 to 60 gallons per minute.

• Versatile Compatibility – Suitable for diesel fuel, kerosene, and biodiesel blends up to B20.

• Heavy-Duty Construction – Designed to withstand demanding commercial and industrial applications.

• Mechanical Operation – No external power source required for operation.

• Integrated Totalizer – Tracks cumulative fuel usage for inventory and maintenance monitoring.

Performance Specifications

• Flow Range: 6 – 60 GPM

• Compatible Fluids:

  • Diesel Fuel

  • Kerosene

  • Biodiesel up to B20

• Inlet Connection: 1.5" Female NPT

• Outlet Connection: 1.5" Female NPT

• Maximum Operating Pressure: 150 PSI

• Operating Temperature Range: -15°F to 180°F (-26°C to 82°C)

• Accuracy: ±2%

• Repeatability: ±0.25%

• Display Type: Mechanical

• Display Digits: 4

• Totalizer: Yes

• Pulse Output: No

• Power Source: Mechanical

Benefits

• Provides Accurate Fuel Tracking

• Operates Without Batteries or External Power

• Ideal for High-Volume Fuel Transfer Systems

• Supports Fuel Inventory Management

• Built for Long-Term Reliability

• Performs in Harsh Operating Environments

Applications

• Fleet Fueling Systems

• Fuel Storage Tanks

• Agricultural Equipment

• Construction Equipment

• Industrial Fuel Transfer Systems

• Commercial Fuel Dispensing Applications

• Bulk Fuel Management Systems

Built for Reliability

The Fill-Rite TN860AN1CAB1GAC is engineered to provide dependable fuel measurement in demanding transfer applications. Its positive displacement metering technology and rugged construction ensure consistent performance, accurate fuel tracking, and long service life in commercial and industrial environments.

Dimensions

• Product Dimensions (H × W × D): 8" × 6.5" × 7"

• Product Weight: 7.9 lbs

• Package Dimensions (H × W × D): 10.75" × 7.94" × 7.31"

• Gross Weight: 8.8 lbs
