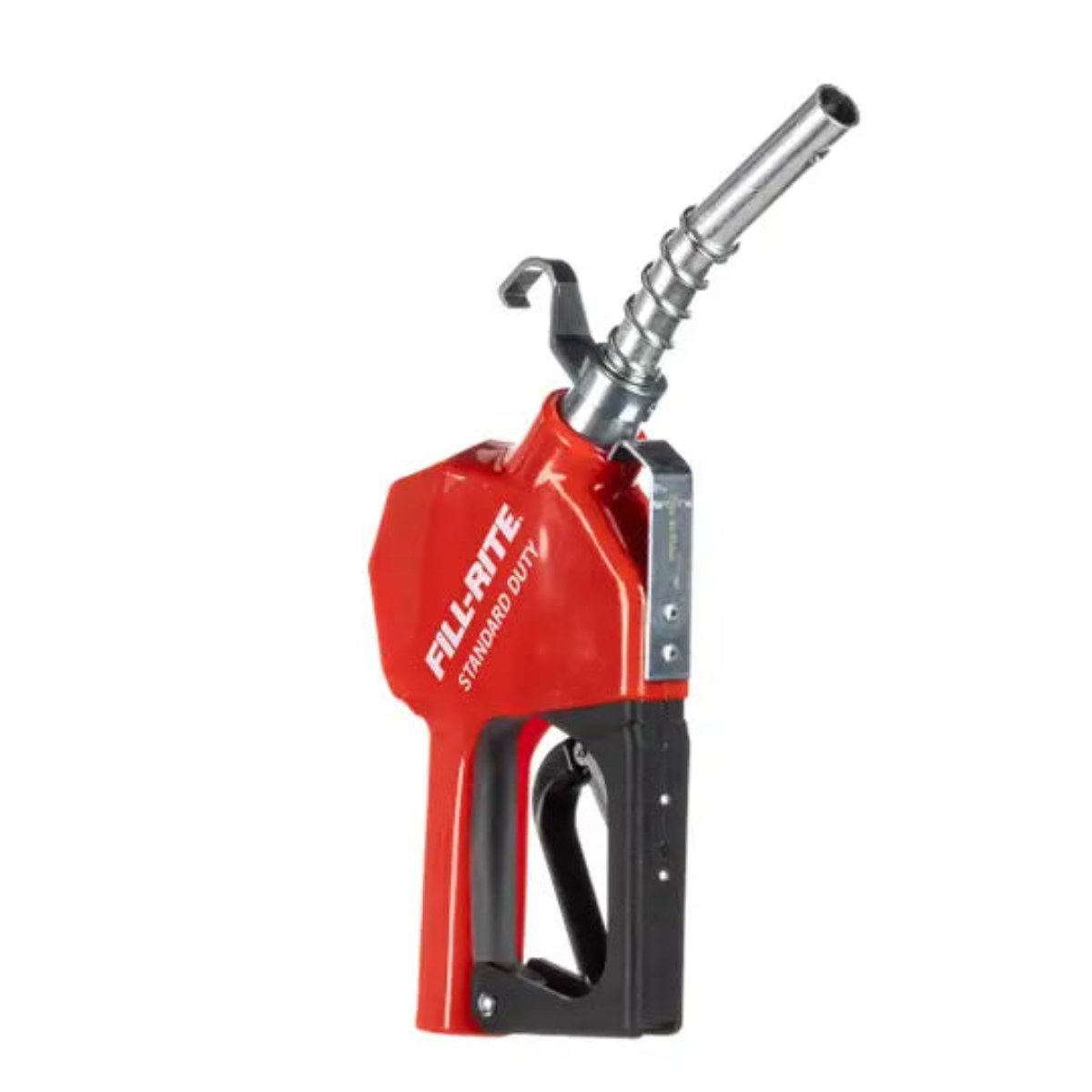

Fill-Rite SDN075RAN 3/4" Automatic Unleaded Fuel Nozzle

The Fill-Rite SDN075RAN is a 3/4" automatic fuel transfer nozzle designed for gasoline fueling applications. Featuring a 13/16" unleaded spout and red nozzle cover, this model delivers reliable performance while providing automatic shutoff protection to help prevent overfills and spills.

Part of Fill-Rite’s SD Series, the SDN075RAN combines affordability, durability, and dependable operation. Designed for standard-duty applications, it offers the quality and reliability that Fill-Rite customers expect while maintaining an economical price point.

Features

• Heavy-Duty Cast Aluminum Construction – Built with durable cast aluminum for long-lasting performance in demanding fueling environments.

• Automatic Shutoff – Automatically stops fuel flow when the tank reaches capacity, helping prevent spills and overfilling.

• Adjustable Flow Control – Three latch positions allow operators to adjust fueling speed to match different equipment requirements.

• Spout Spring Included – Helps maintain proper nozzle positioning and reduces the risk of damage during fueling.

• Standard-Duty Performance – Designed to deliver dependable operation for everyday fuel transfer applications.

• Value-Focused Design – Offers Fill-Rite reliability and durability at a competitive price.

Performance Specifications

• Model: SDN075RAN

• Nozzle Type: 3/4" Automatic Unleaded Fuel Nozzle

• Maximum Flow Rate: 14.5 GPM (54.8 LPM)

• Application: Gasoline Transfer

• Inlet Connection: 3/4" Female NPT

• Spout Diameter: 0.81" (13/16")

• Maximum Operating Pressure: 50 PSI

• Shutoff Type: Automatic

Benefits

• Prevents Overfills and Fuel Spills

• Durable Cast Aluminum Construction

• Easy and Comfortable Operation

• Adjustable Fueling Speeds

• Reliable Automatic Shutoff Protection

• Cost-Effective Fuel Transfer Solution

Applications

• Gasoline Transfer Pumps

• Service Stations

• Fleet Fueling Systems

• Agricultural Equipment

• Construction Equipment

• Fuel Storage Tanks

• Commercial Fuel Transfer Systems

Important Note

• Fill-Rite automatic shutoff nozzles are not designed for use in gravity-flow fuel systems.

Built for Reliability

The Fill-Rite SDN075RAN provides dependable fueling performance with automatic shutoff protection and rugged construction. Its compact design and standard-duty rating make it an excellent choice for gasoline transfer applications where reliability, safety, and value are important.

Dimensions

• Package Dimensions (H × W × D): 14.5" × 9.5" × N/A

• Gross Weight: 2.93 lbs
