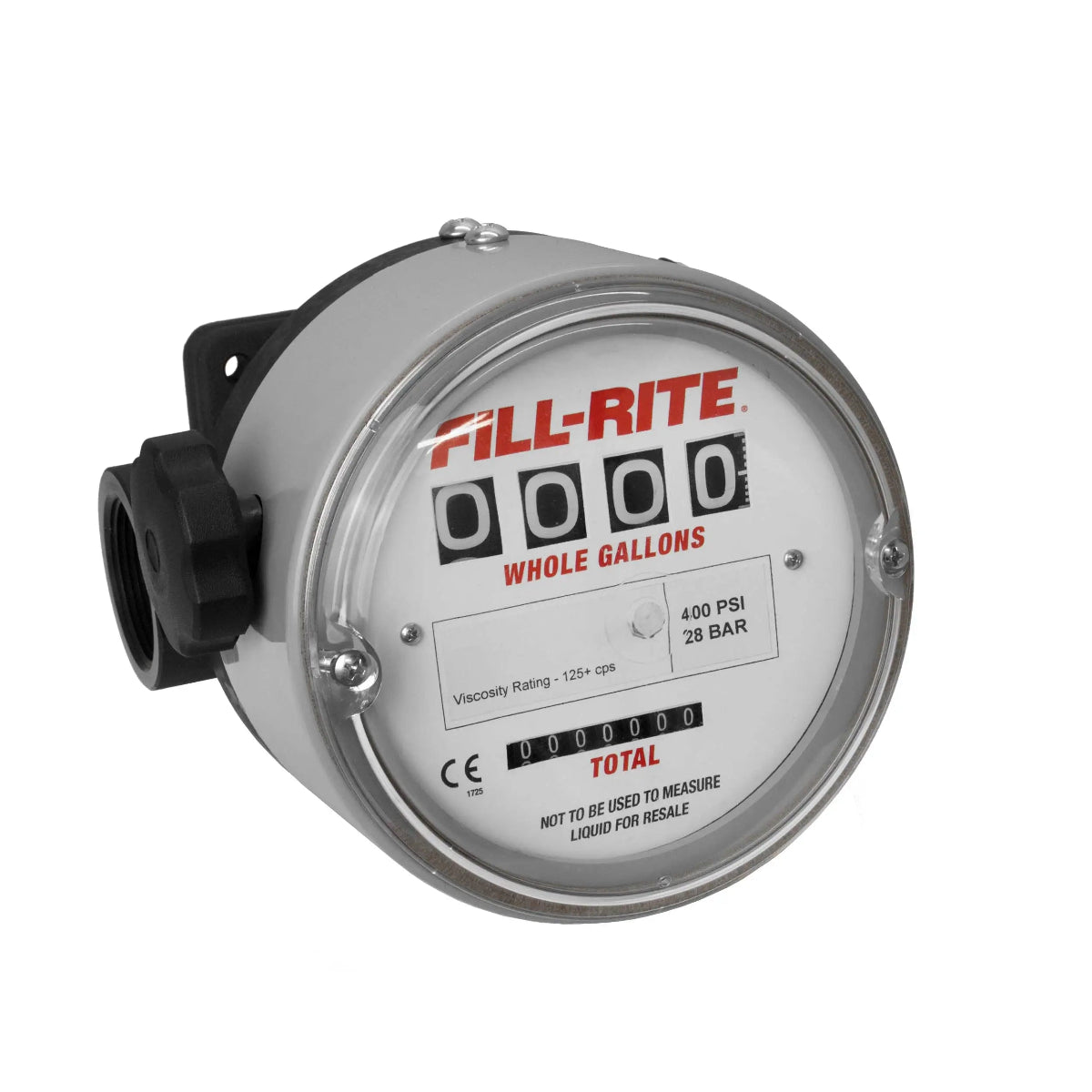

Fill-Rite TN760AN1CAB1GAF Mechanical Fuel Transfer Meter

Fill-Rite TN Series mechanical fuel transfer meters are engineered for high-pressure, high-volume, and high-accuracy fluid transfer applications. Designed to perform in demanding environments, these meters provide dependable measurement for heavy oils and industrial fluids.

The TN760AN1CAB1GAF is a 4-digit mechanical fuel transfer meter designed for high-pressure and high-viscosity applications. Equipped with 1.5" female NPT connections, this meter measures flow rates from 0.8 to 15 GPM while delivering accuracy up to ±1% and repeatability of ±0.25%. This model does not include additional accessories.

Features

• Reliable Positive Displacement Technology – Proven nutating disc technology delivers consistent and dependable measurement accuracy in unattended transfer applications.

• Versatile Fluid Compatibility – High-pressure metering chamber is specifically designed for high-viscosity oils and heavy fluid transfer.

• Durable Construction – Built with an anodized aluminum housing and resin metering chamber for long-term performance in harsh environments.

• High-Pressure Performance – Ideal for automotive fluid distribution systems, lubrication trucks, and applications involving hydraulic oils, gear oils, and lubricants.

• Mechanical Operation – No external power source required for operation.

Performance Specifications

• Flow Range: 0.8 – 15 GPM

• Compatible Fluids: Gear Oils, Engine Oils

• Inlet Connection: 1.5" Female NPT

• Outlet Connection: 1.5" Female NPT

• Maximum Operating Pressure: 400 PSI

• Operating Temperature Range: -15°F to 180°F (-26°C to 82°C)

• Accuracy: ±1%

• Repeatability: ±0.25%

• Display Type: Mechanical

• Display Digits: 4

• Totalizer: Yes

• Pulse Output: No

• Power Source: Mechanical

Built for Reliability

Fill-Rite TN Series meters are designed to withstand demanding industrial and automotive fluid handling applications. Their rugged construction and precision measurement capabilities make them an excellent choice for accurately monitoring the transfer of high-viscosity fluids under high-pressure conditions.

Dimensions

• Product Dimensions (H × W × D): 7.5" × 6.5" × 6.5"

• Product Weight: 7.5 lbs

• Package Dimensions (H × W × D): 10.75" × 7.94" × 7.31"

• Gross Weight: 8.6 lbs
