Fill-Rite

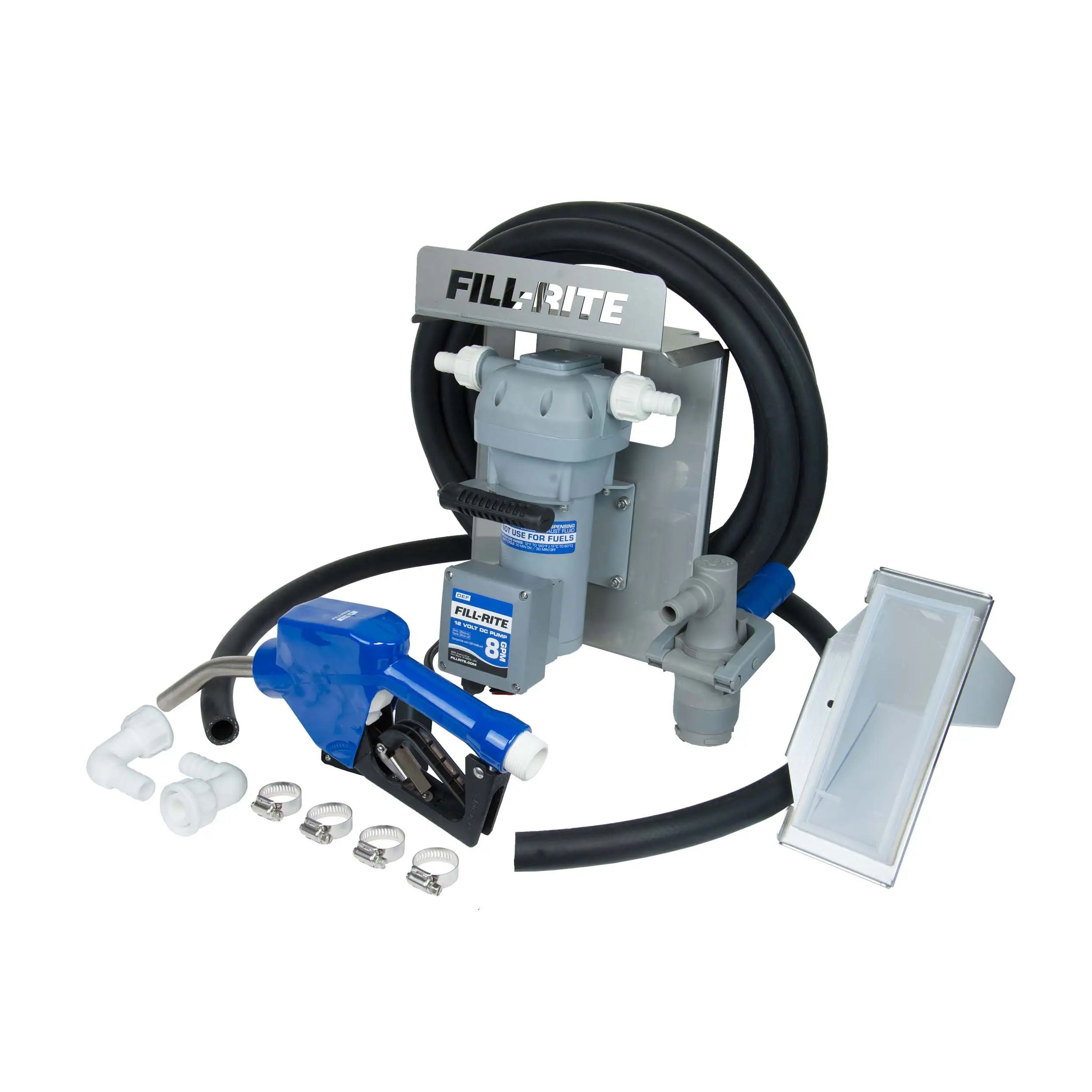

DF120CAN520-RP Fill-Rite 12V DC DEF Transfer Pump, IBC Tote Bracket with Nozzle & Coupler
DF120CAN520-RP Fill-Rite 12V DC DEF Transfer Pump, IBC Tote Bracket with Nozzle & Coupler
Precio habitual
$989.00
Precio habitual
Precio de oferta
$989.00
Cantidad
No se pudo cargar la disponibilidad de retiro
- Durable Construction – engineered with multi-diaphragm technology and EPDM seals, this pump excels in daily DEF transfer
- No Mess Performance – integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal
- No Crystallization – fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization

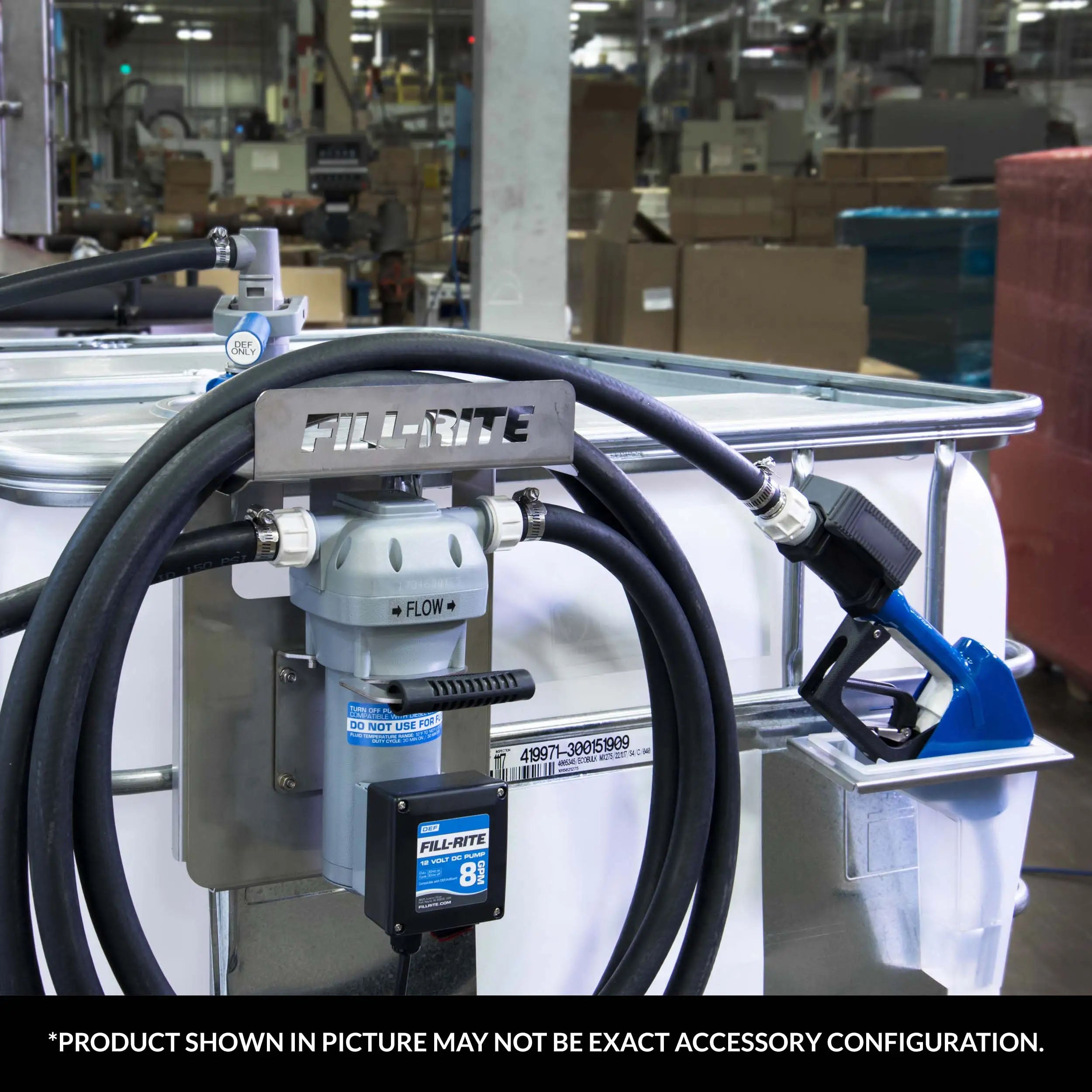

- Flexible Installation – convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration
- Closed-Loop System – create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity
Specifications:
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | DEF, Water |
| Inlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Outlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Mounting Type | IBC Tote Bracket |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 6 ' |
| Max Operating Pressure (PSI) | 38 |
| Discharge Head (ft) | 87 ' |
| Max Current (A) | 22 A |
| Operating Temperature Range (°F) | -- |
| AC Frequency (Hz) | -- |
