Fill-Rite TT10AN 2-35 GPM 4-Digit Digital Fuel Transfer Meter (NOT FOR FLUID RESALE)
Fill-Rite TT10AN 2-35 GPM 4-Digit Digital Fuel Transfer Meter (NOT FOR FLUID RESALE)
Precio habitual
$219.00
Precio habitual
Precio de oferta
$219.00
Cantidad
No se pudo cargar la disponibilidad de retiro

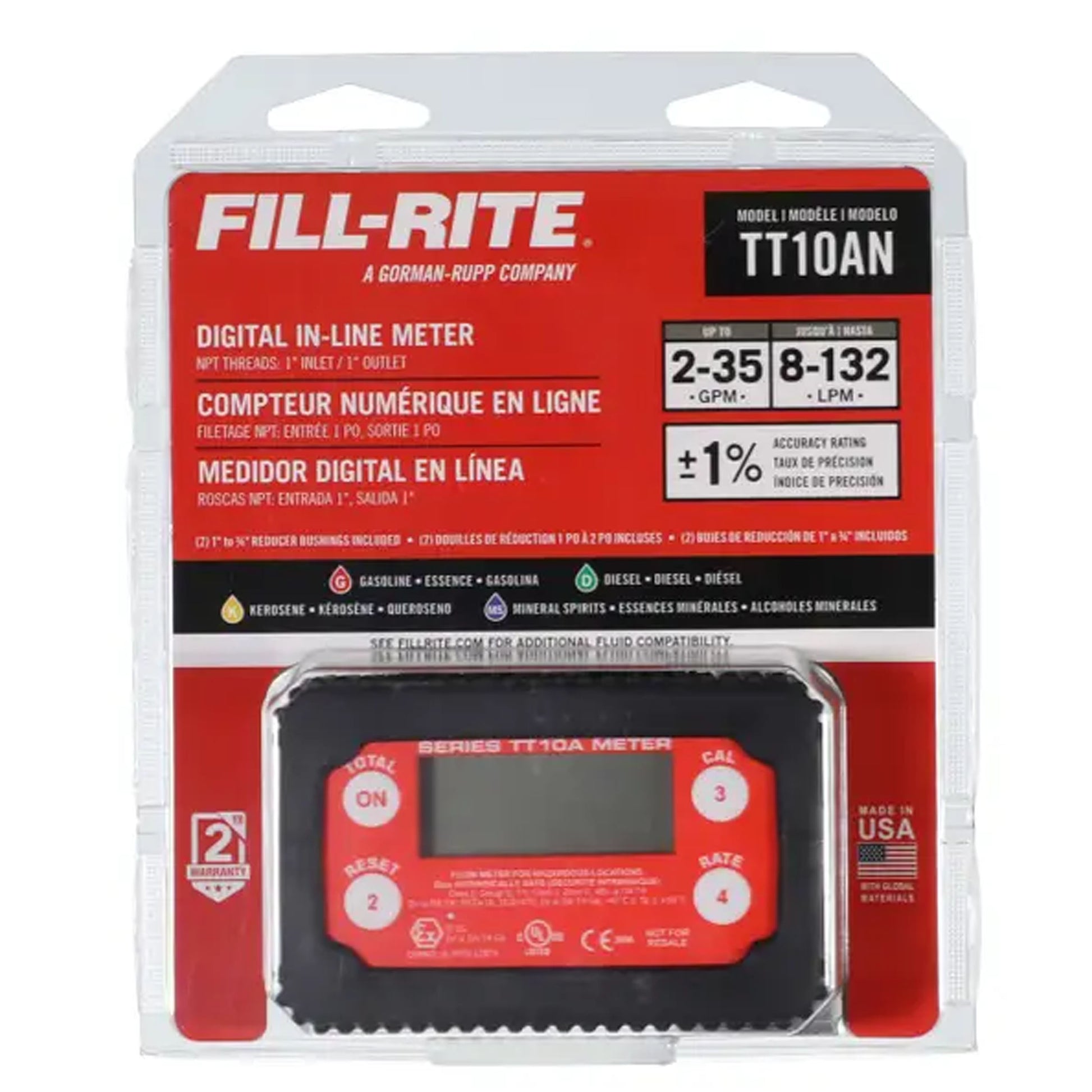

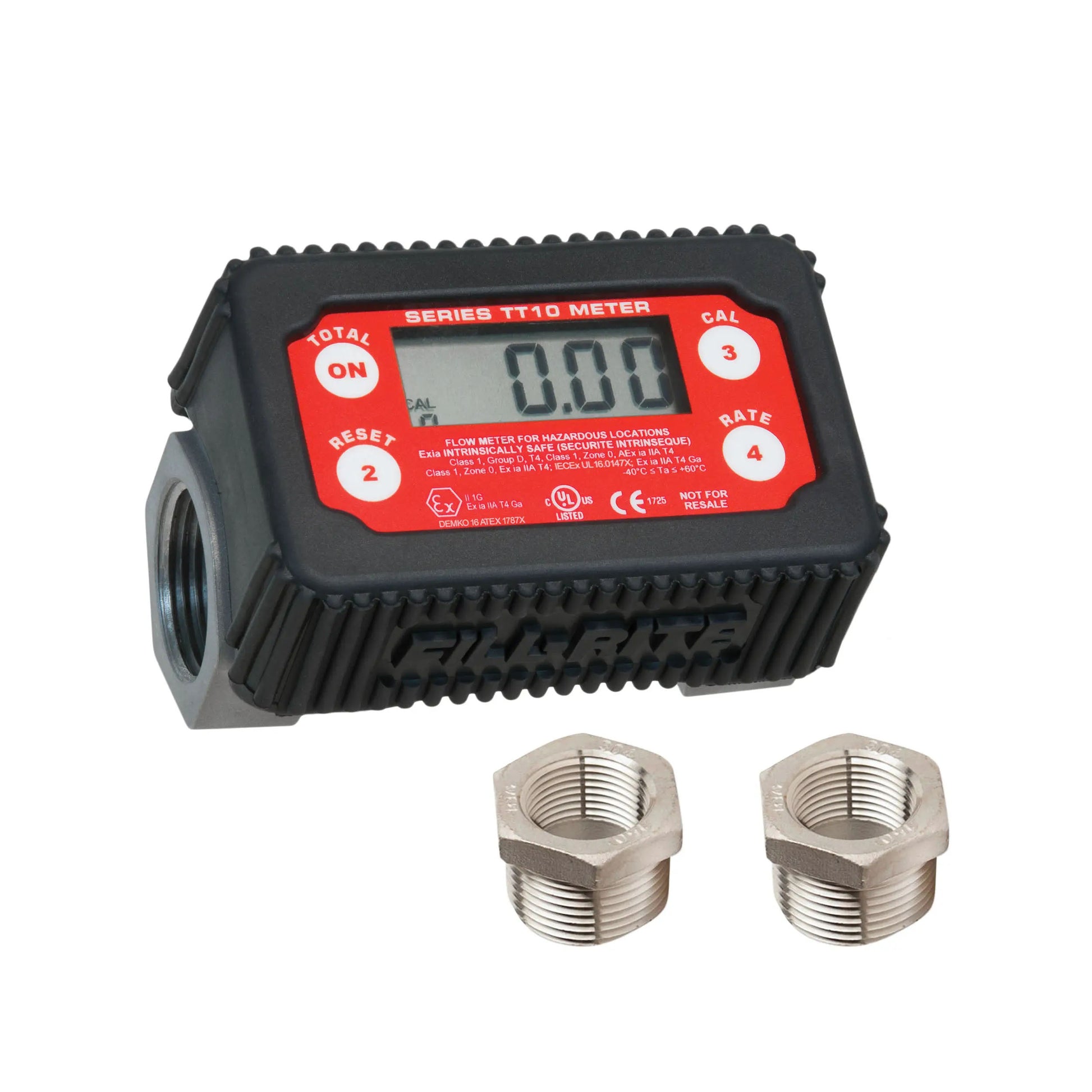

The TT10AN is a 4-digit digital fuel transfer meter. This meter is equipped with NPT threads and is designed to register 2-35 gallons per minute at +/-1% accuracy. This meter bundle includes (2) 0.75" reducer bushings.
- Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
- Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible

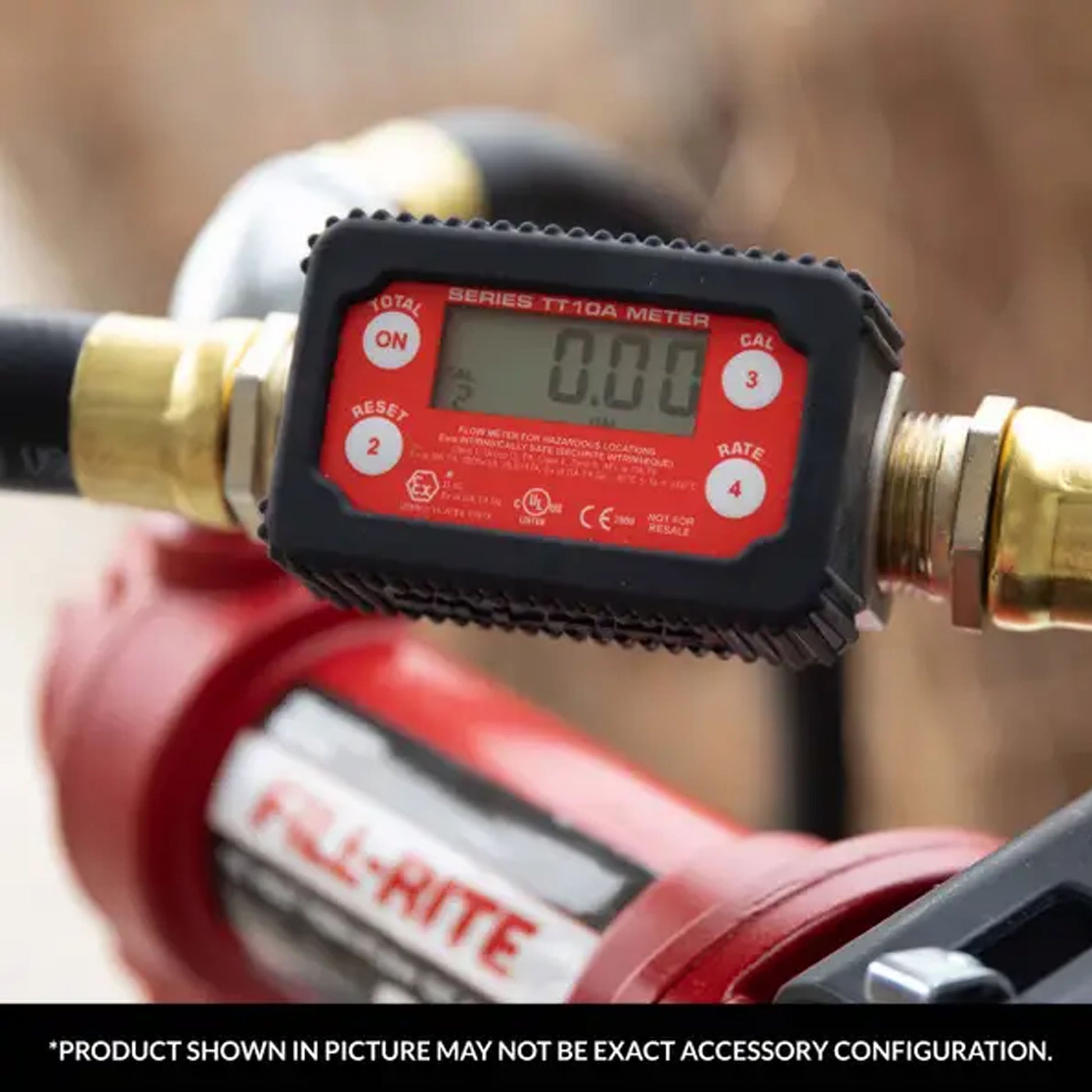

- Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
- Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
- Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
- Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications
- Lifetime Tracking – non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced
| Flowrate Range (GPM) | 2-35 GPM/ 8-132 LPM |
|---|---|
| Power Type | Battery-Powered |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane |
| Inlet Size / Connection / Thread | 1 " / Female / NPT (with Reducer Bushings) |
| Outlet Size / Connection / Thread | 1 " / Female / NPT (without Reducer Bushings) |
| Operating Temperature Range (°F) | -40 - 140°F / -40 - 60°C |
| Max Operating Pressure (PSI) | 50 |
| Accuracy (+/- %) | 1 % |
| Repeatability (+/- %) | 0.3 % |
| Display Type | LCD |
| Display Digits | 4 |
| Pulse Rate | -- |
| Power Source | Battery |
| Totalizer | Yes |
| Pulse Output | No |
