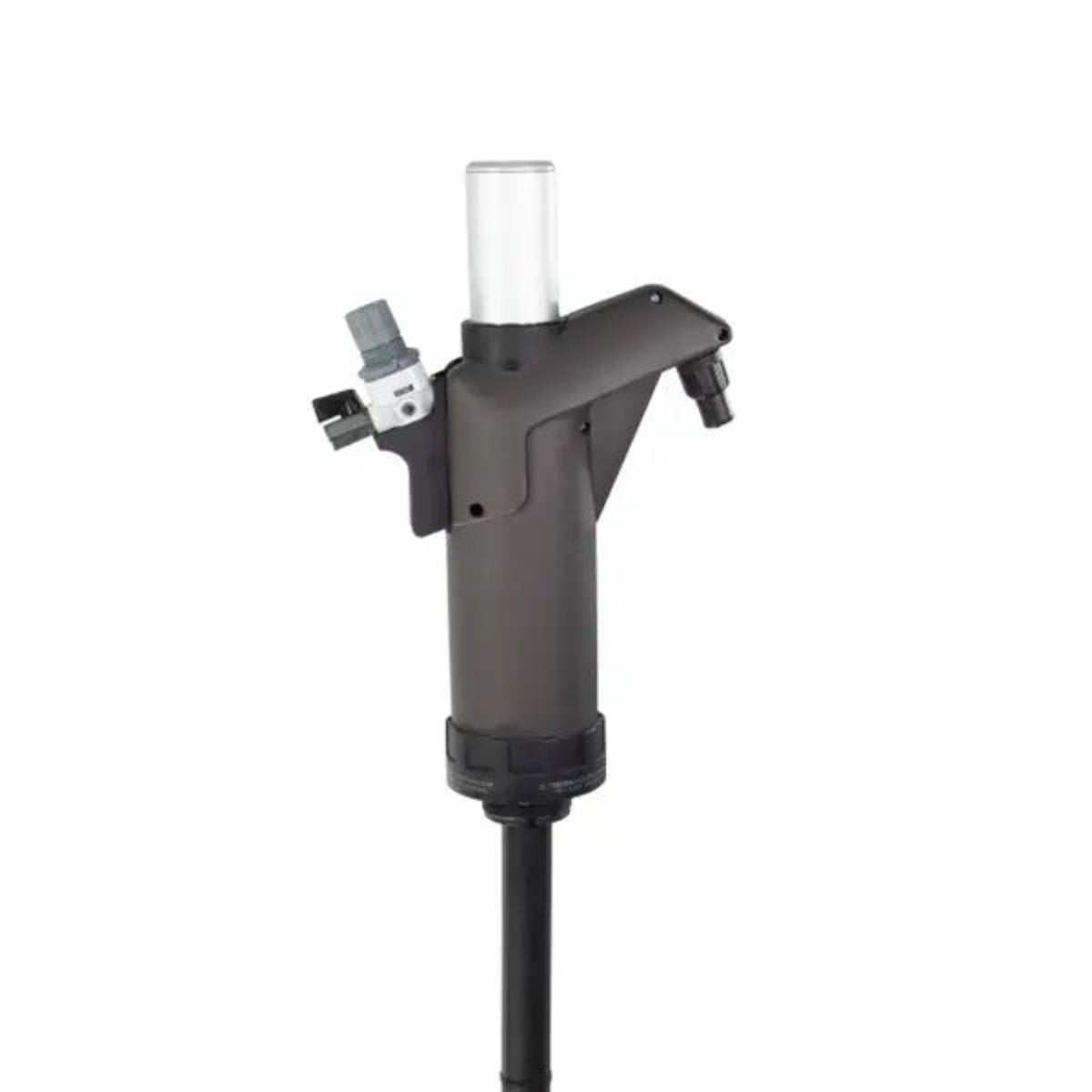

FRAP32V – Pneumatic Fluid Transfer Pump

The FRAP32V is an economical pneumatic pump designed for low-volume transfer applications from 55-gallon drums. Manufactured from corrosion-resistant polypropylene, it is ideal for workshops, industrial applications, and chemical fluid handling.

Features

• Rugged polypropylene construction resistant to chemicals and corrosion.

• Pneumatic operation via connection to an existing compressed air line.

• Economical solution for fluid transfer from drums.

• Compatible with diesel, DEF, antifreeze, motor oils, hydraulic oils, gear oils, and mild acids.

• Designed for continuous duty.

Specifications

• Power type: Pneumatic (compressed air)

• Flow rate: 6.5 GPM

• Inlet: 1" NPT female

• Outlet: 3/4" hose barb

• Mounting: 2" NPT drum bung

• Duty: Continuous

Compatible Fluids

• Diesel

• DEF (AdBlue)

• Antifreeze

• Hydraulic oils

• Motor oils

• Gear oils

• Mild acids

Included Accessories

• Adjustable polypropylene telescopic suction tube from 19½" to 35½"

• Installation components

Dimensions and Weight

• Dimensions: 11" × 4.5" × 16.5"

• Product weight: 3.2 lb

• Gross weight: 4.4 lb

This pump is intended for users who already have compressed air in the workshop and need a simple, economical solution to transfer fluids from drums without using electricity.
