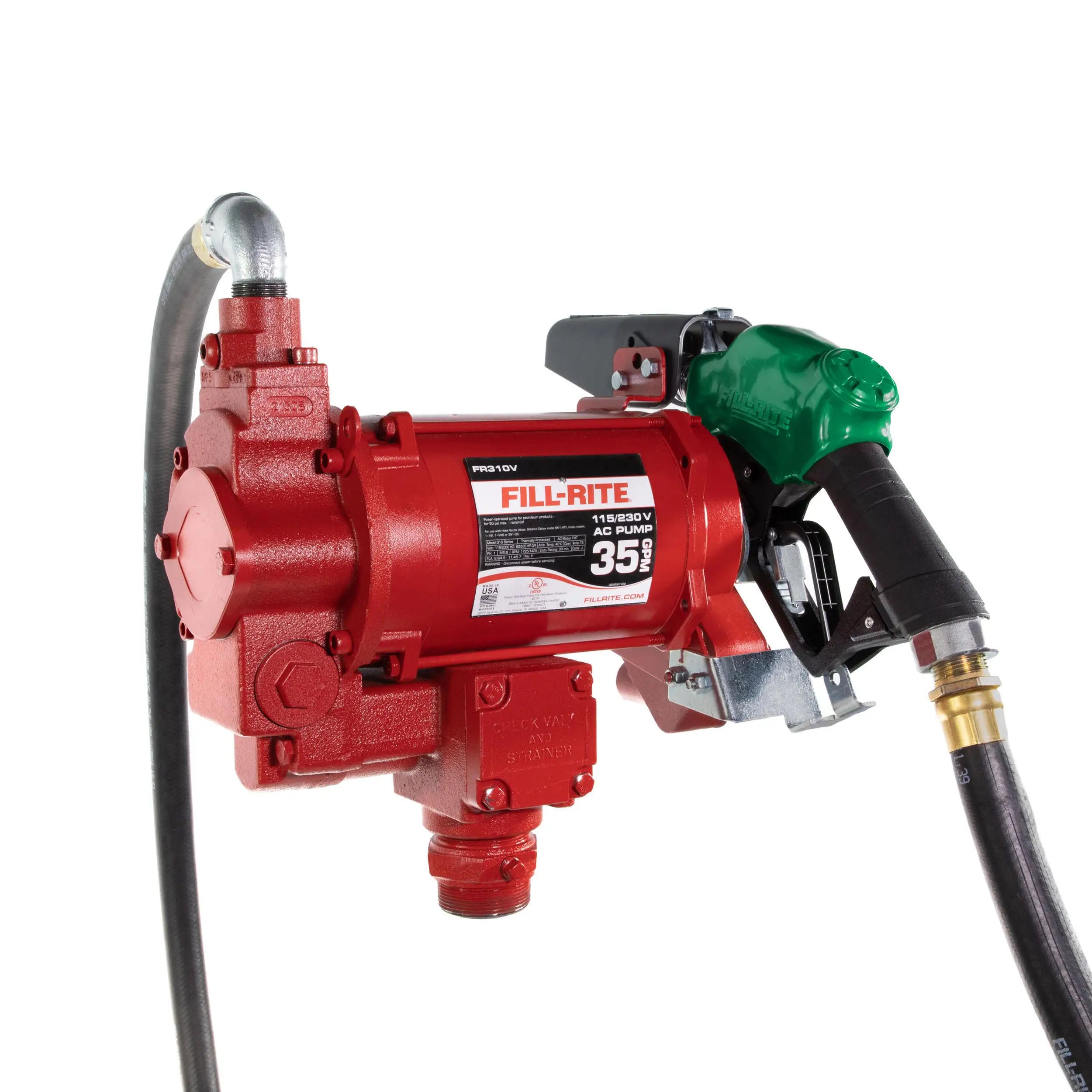

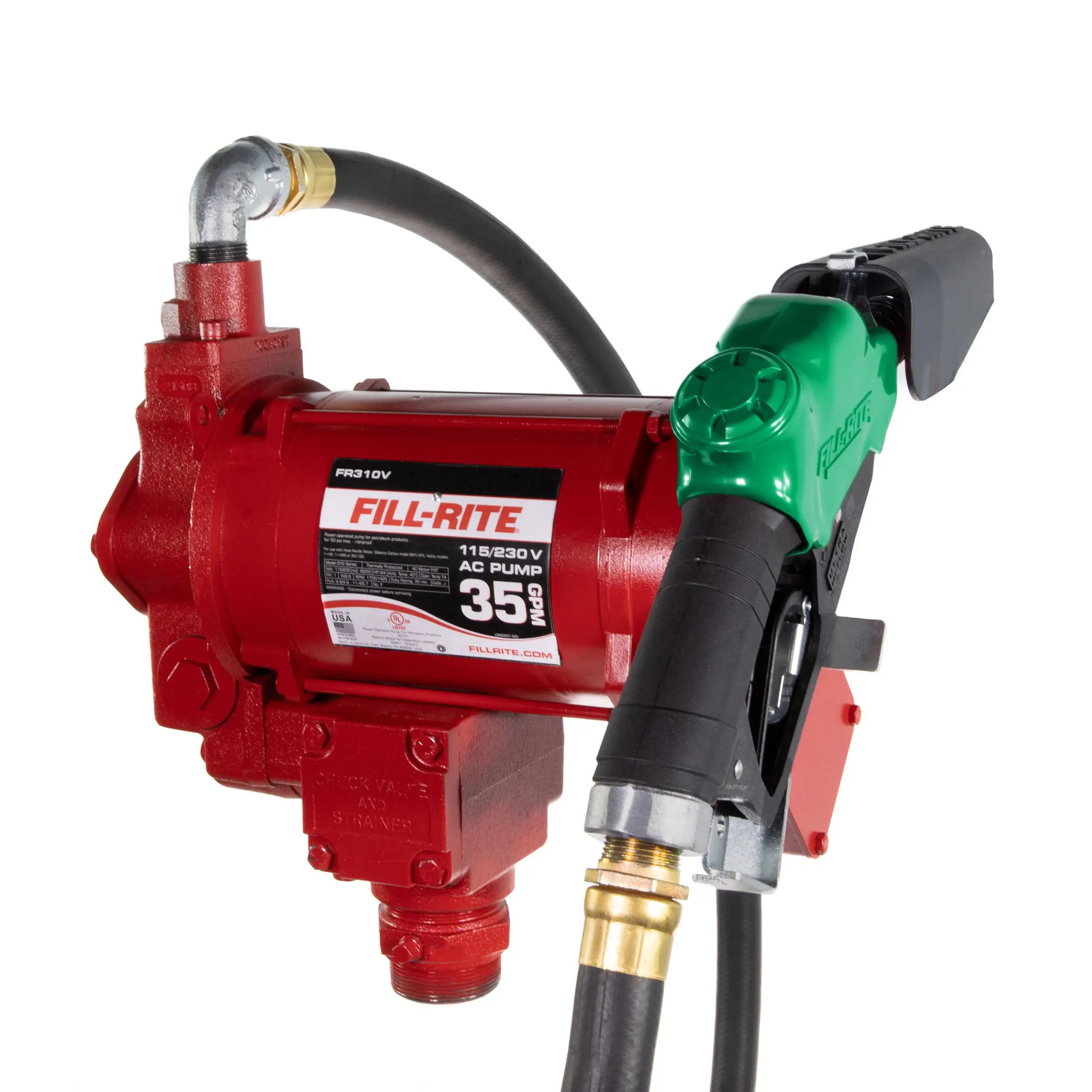

FR310VB Fill-Rite 115/230V AC 35 GPM Fuel Transfer Pump with Nozzle
FR310VB Fill-Rite 115/230V AC 35 GPM Fuel Transfer Pump with Nozzle
No se pudo cargar la disponibilidad de retiro
-
Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
-
High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 35 gallons per minute, perfect for filling your largest equipment with fuel tanks sized at 35-140+ gallons
-
Dual Voltage Motor — powered by a dual voltage 115-230V AC motor, you can conveniently select the right voltage during installation with a simple switch
-

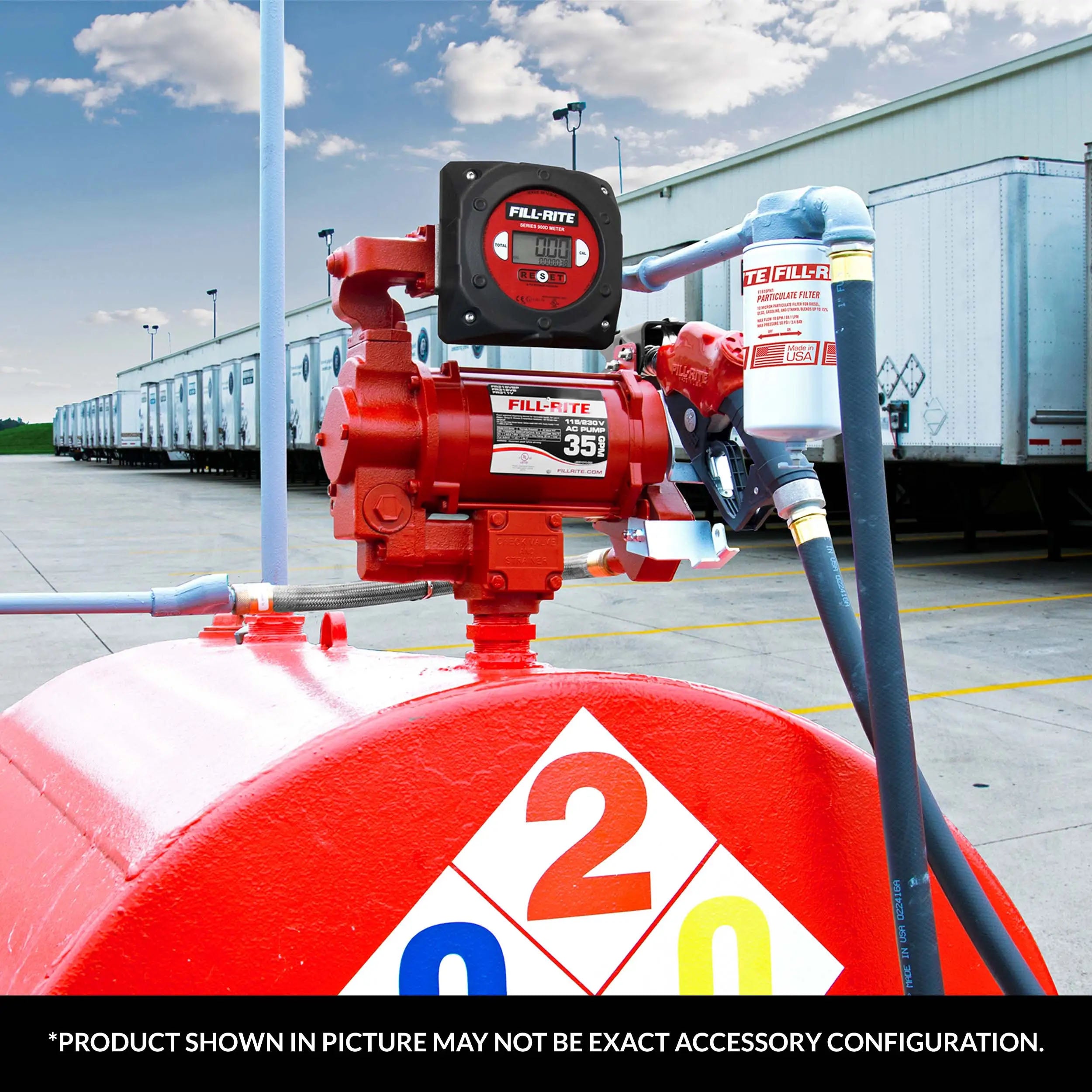

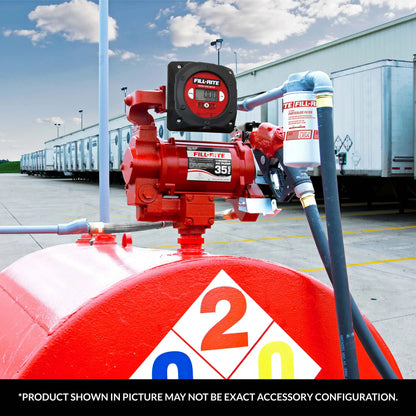

Stationary Tanks — Equipped with a 2 inch bung mount, this pump is ideal for installing onto stationary aboveground tanks
-
Fluid Compatibility — designed for daily use with diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20
-
Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
-
Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
-
Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
-
Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment
Specifications:
| Max Flowrate | 35 GPM / 132 LPM |
|---|---|
| Power Type | 115V/230V AC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20 |
| Inlet Size / Connection / Thread | 1.25 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.75 |
| Max Current (A) | 9.8 A (115V) / 4.9 A (230V) |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 18 ' |
| Dry Vacuum (in. Hg) | 14 |
| Operating Temperature Range (°F) | -13 to 150°F |
| Discharge Head (ft) | 60 ' |
| Strainer Mesh Size (Micron) | 40 x 40 x .008” |
| Max Discharge Pressure (PSI) | 26 PSI |
| Viscosity Range (cSt) | 0.5 - 5.5 |
