Fill-Rite TT10PN 2-35 GPM 4-Digit Digital Chemical Transfer Meter (Not for fluid resale))
Fill-Rite TT10PN 2-35 GPM 4-Digit Digital Chemical Transfer Meter (Not for fluid resale))
Precio habitual
$275.00
Precio habitual
Precio de oferta
$275.00
Cantidad
No se pudo cargar la disponibilidad de retiro

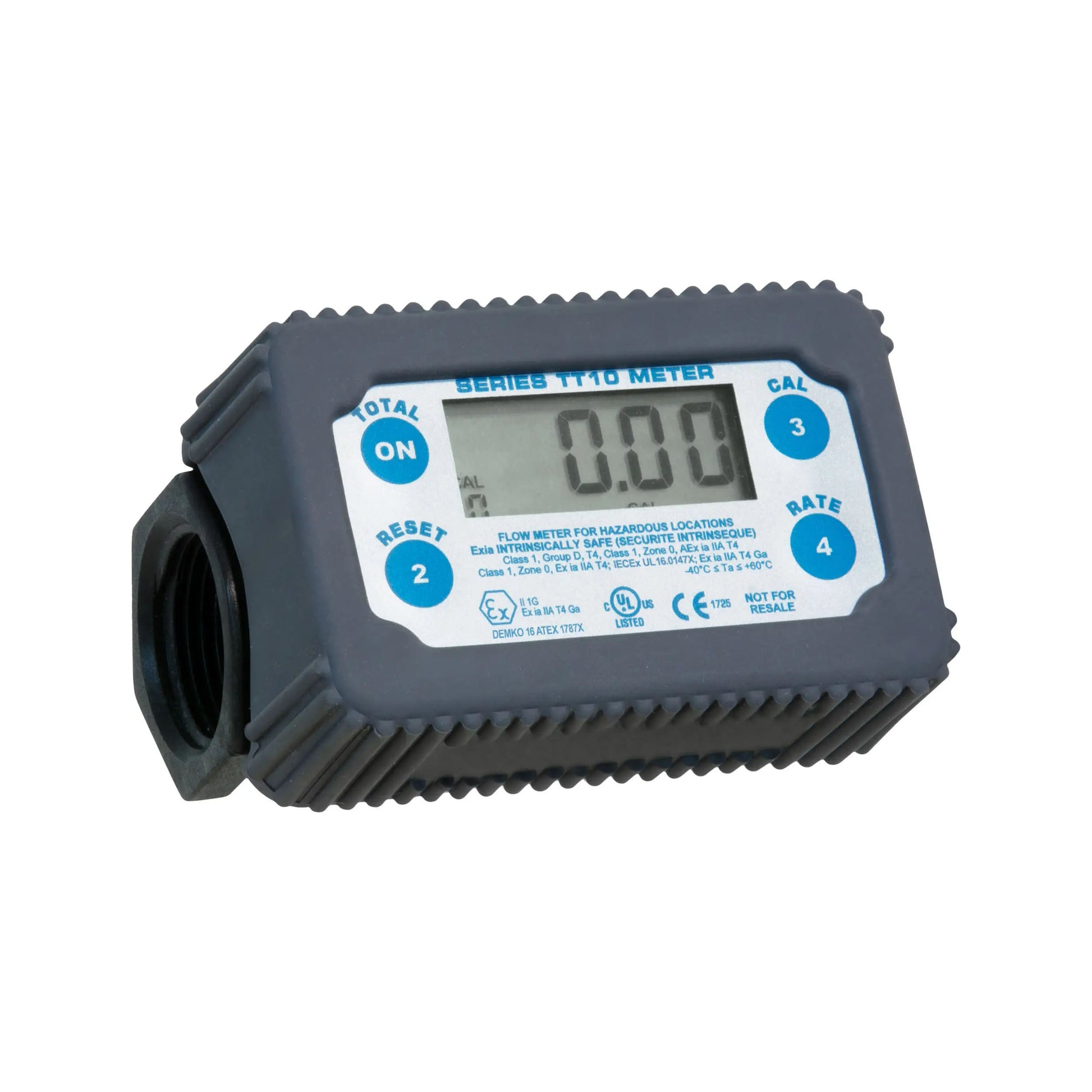

The TT10PN model is a 4-digit, digital, low-viscosity chemical transfer meter. This meter is equipped with NPT threads and is designed to register 2-35 gallons per minute at +/- 1% accuracy.
- Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
- Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible

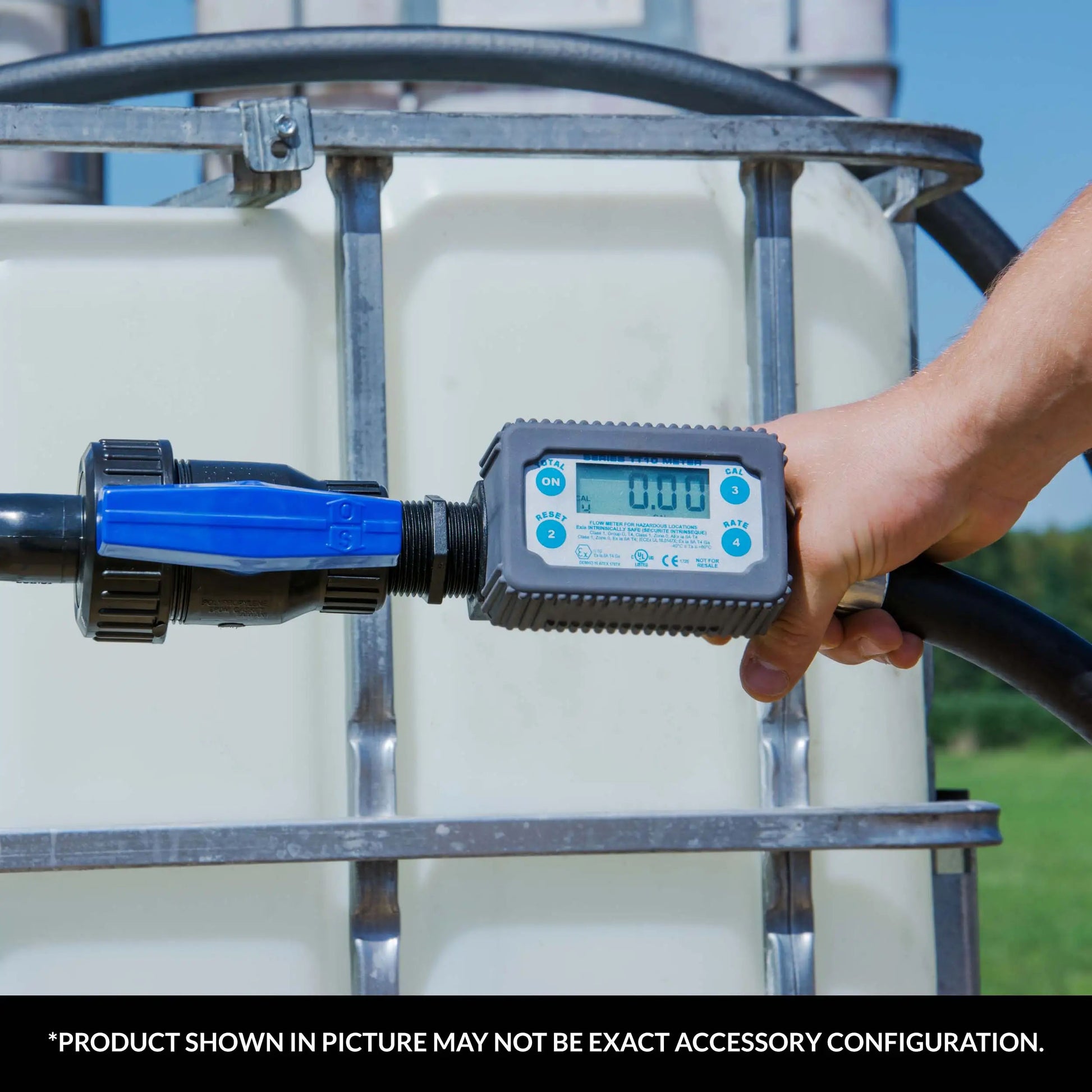

- Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
- Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
- Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
- Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications
- Lifetime Tracking – non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced
| Max Flowrate | 35 GPM / 132 LPM |
|---|---|
| Power Type | -- |
| Compatible Fluids | DEF, Antifreeze, Pesticides, Non-Potable Water, De-icing Fluid, Herbicides |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Type | -- |
| Duty Cycle (min) | -- |
| Motor Power (HP) | -- |
| Suction Lift (ft.) | -- |
| Max Operating Pressure (PSI) | 50 |
| Discharge Head (ft) | -- |
| Max Current (A) | -- |
| Operating Temperature Range (°F) | -15 - 140°F / -26 - 60°C |
| AC Frequency (Hz) | -- |
