Fill-Rite

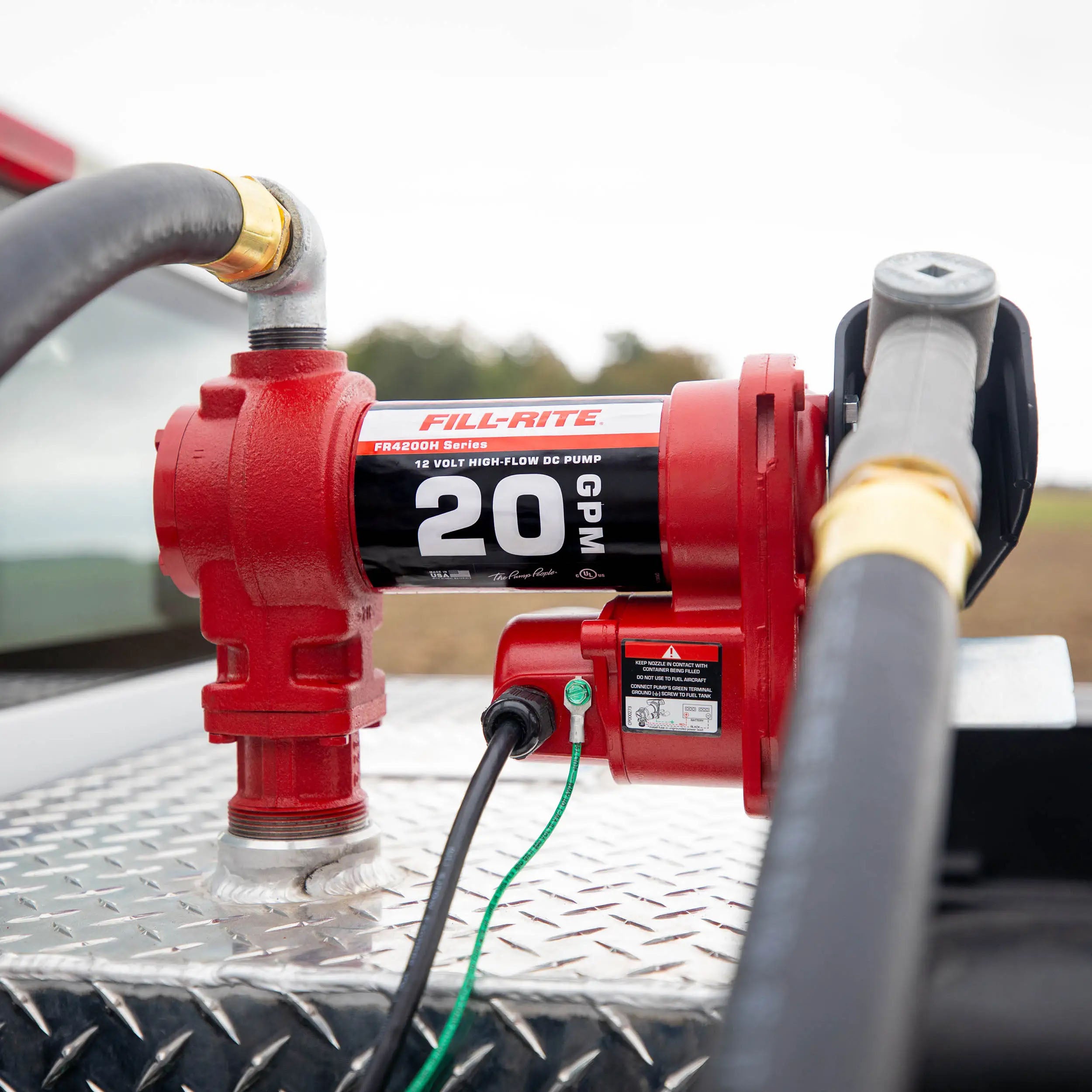

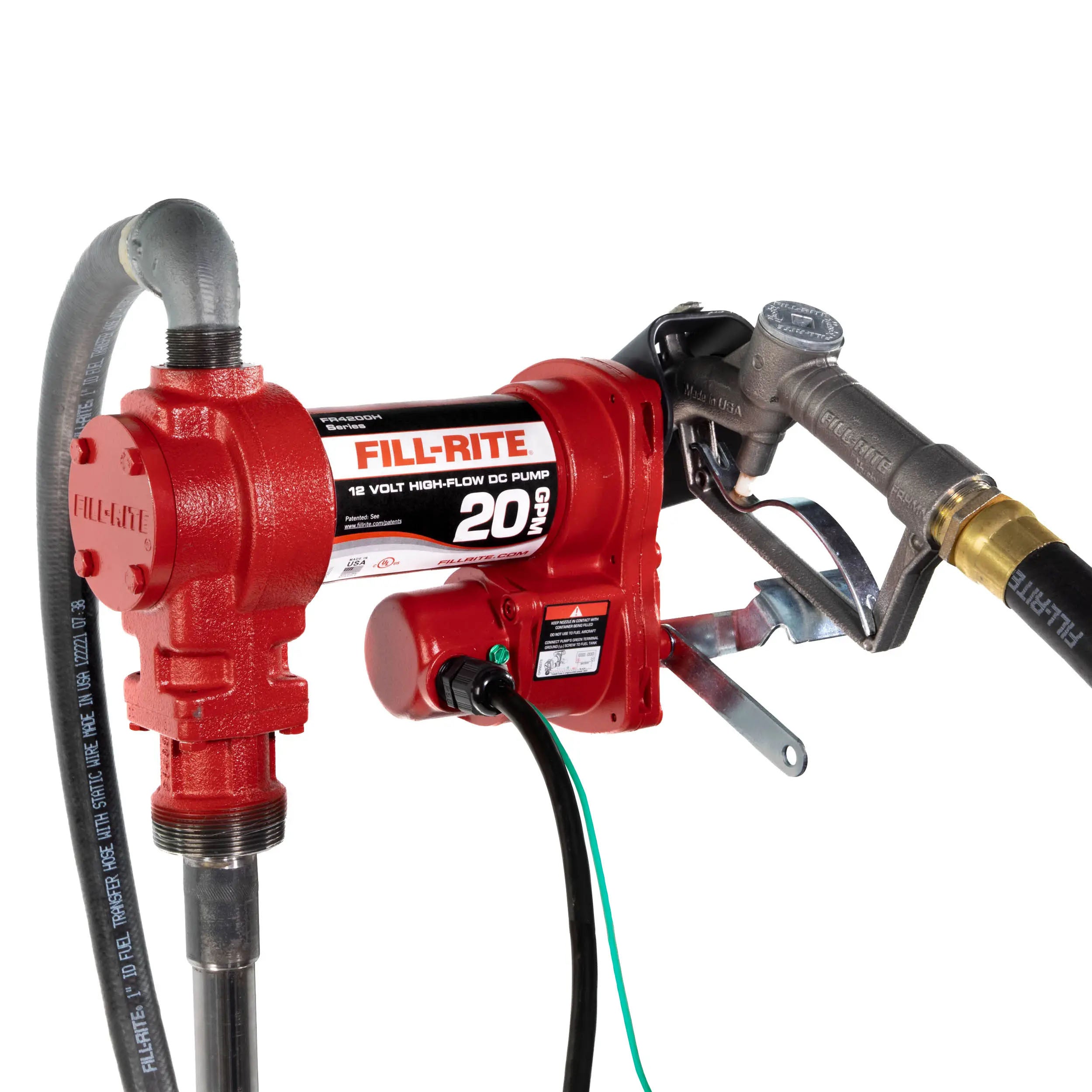

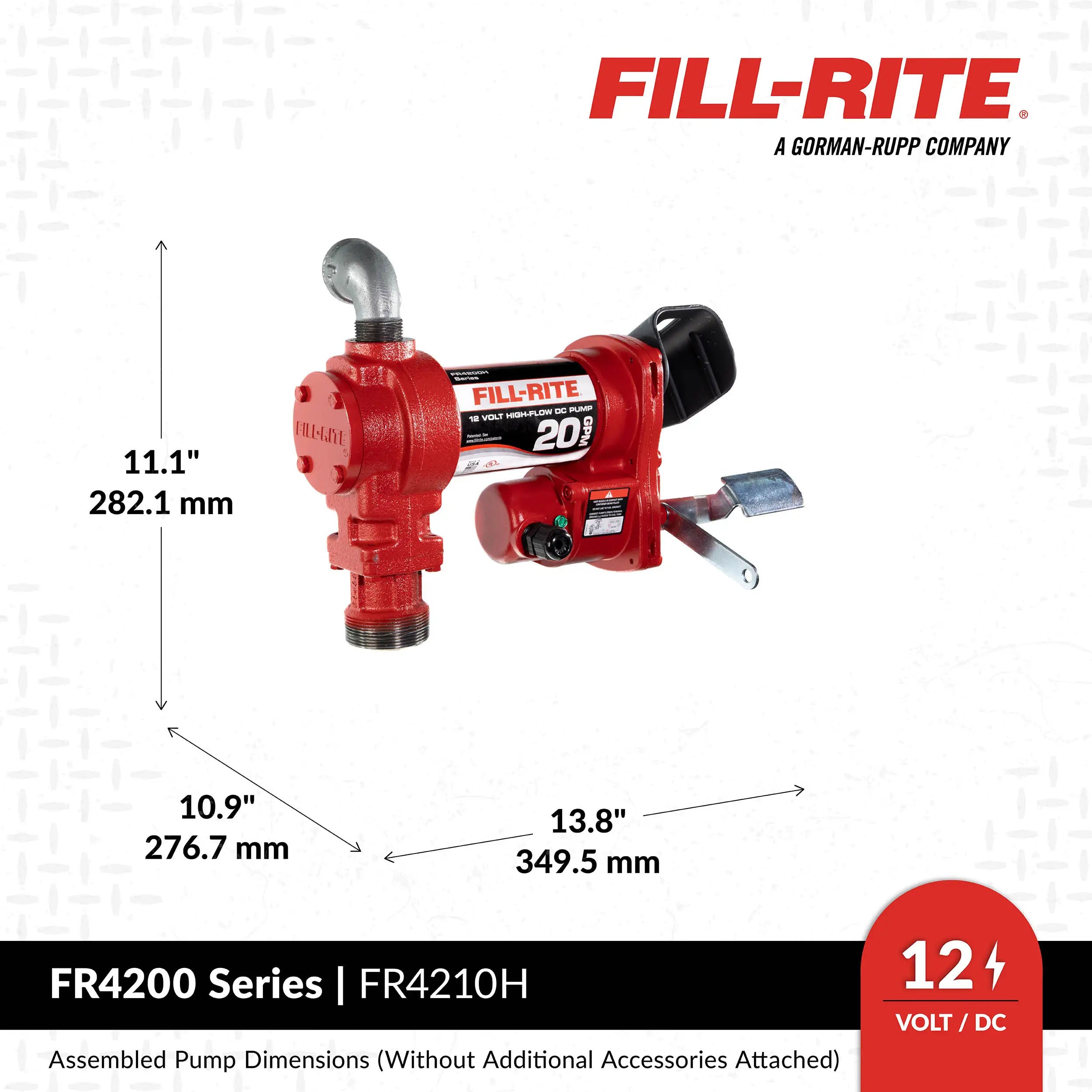

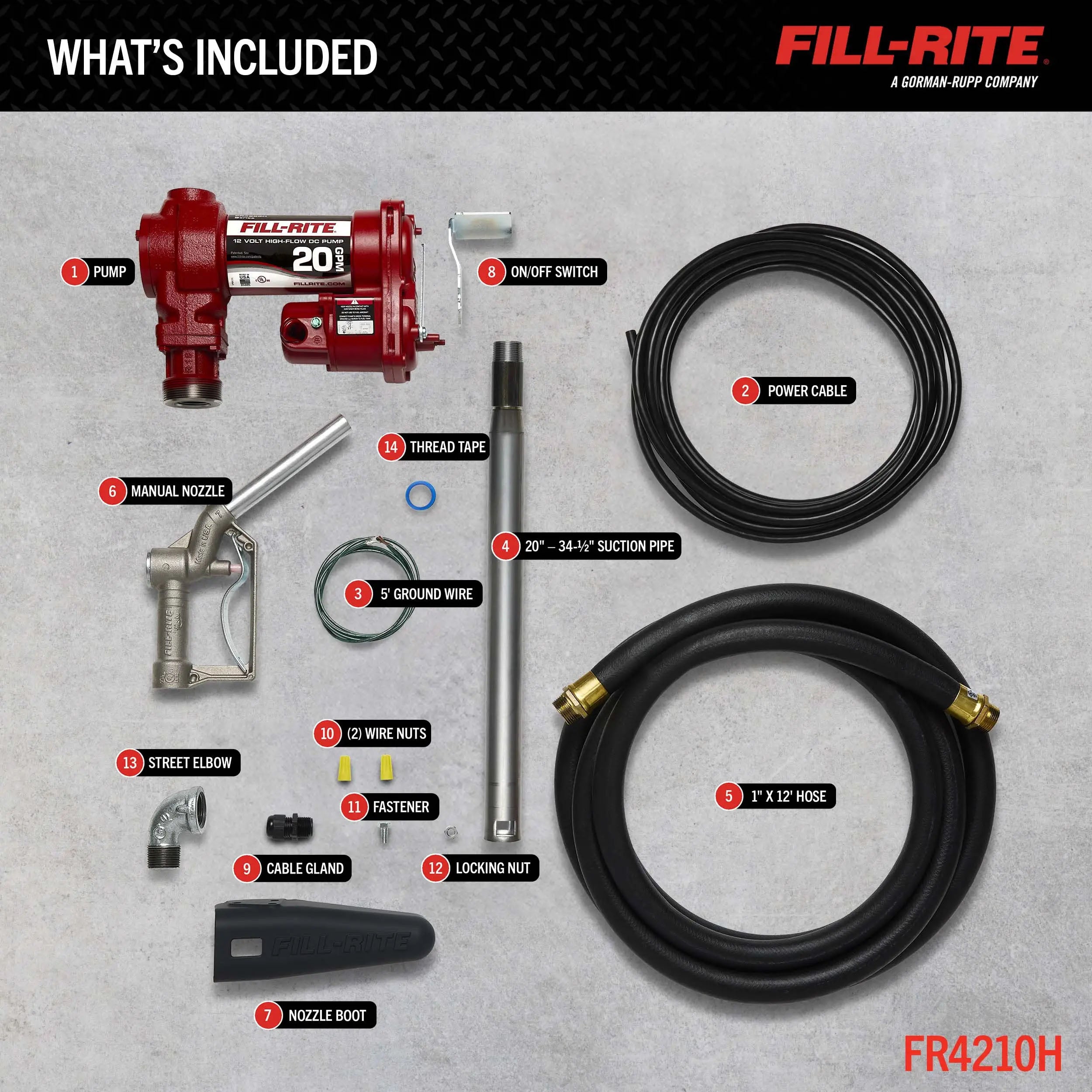

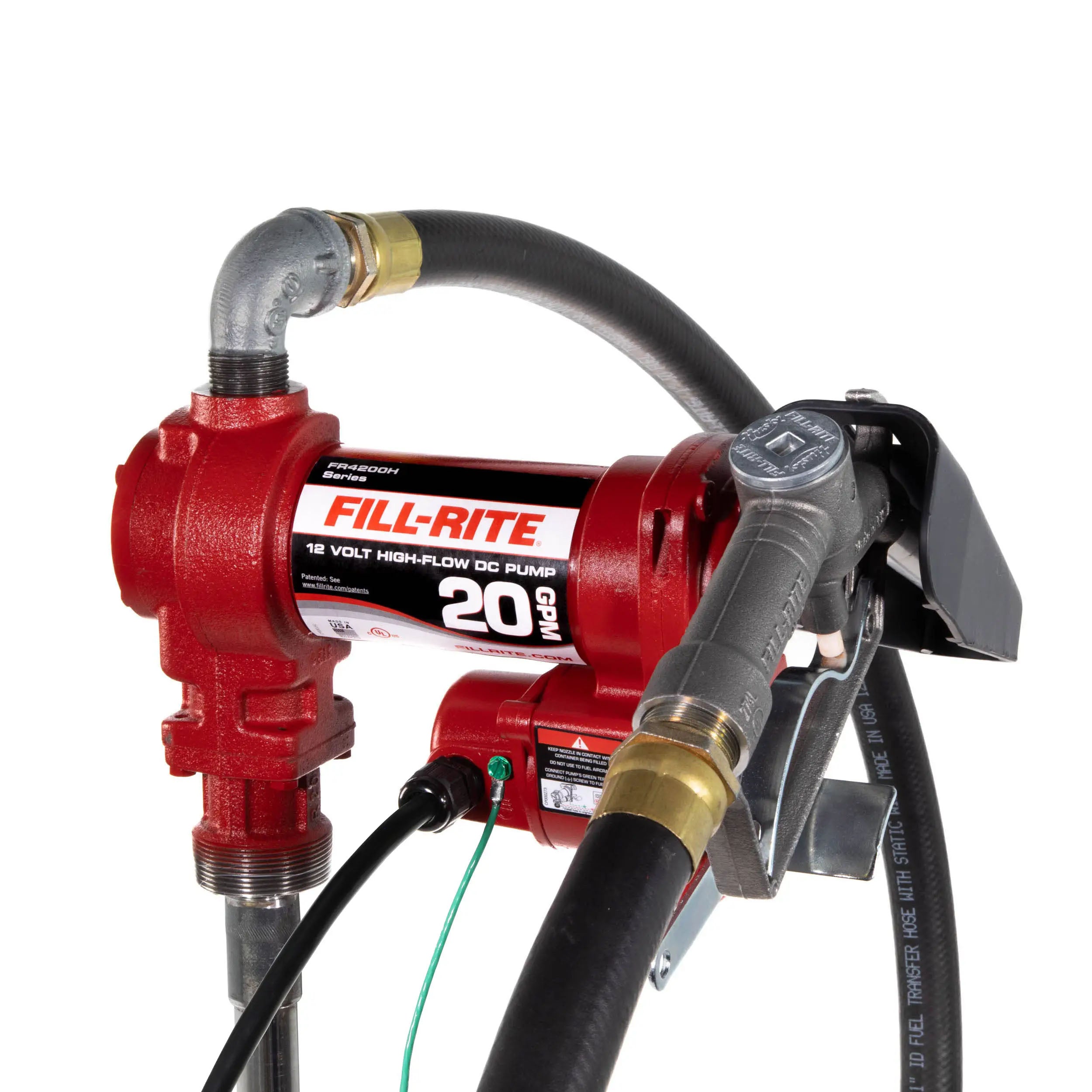

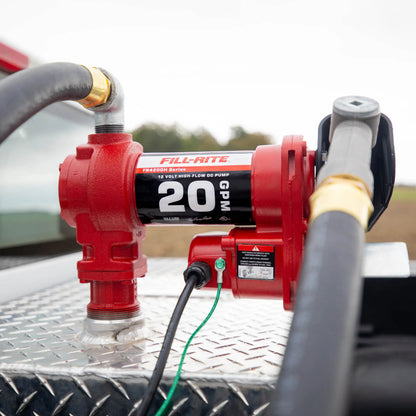

FR4210H Fill-Rite 12V DC 20 GPM Fuel Transfer Pump with Nozzle

$591.00

Oferta Agotado

Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons
Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use

Specifications:

Max Flowrate	20 GPM / 75 LPM
Power Type	12V DC
Compatible Fluids	Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
Inlet Size / Connection / Thread	1 " / Female / NPT
Outlet Size / Connection / Thread	1 " / Female / NPT
Mounting Size / Thread / Type	2" / NPT / Bung Mount
Duty Cycle (min)	30 min on / 30 min off
Power Source	Electrical
Motor Power (HP)	0.25
Max Current (A)	19 A
Thermal Protection Switch	Yes
Self Priming	Yes
Suction Lift (ft.)	8 '
Dry Vacuum (in. Hg)	5
Operating Temperature Range (°F)	-15 to 150°F
Discharge Head (ft)	37 '
Strainer Mesh Size (Micron)	20x20
Max Operating Pressure (PSI)	16
Viscosity Range (cSt)	0.5 to 5.5
