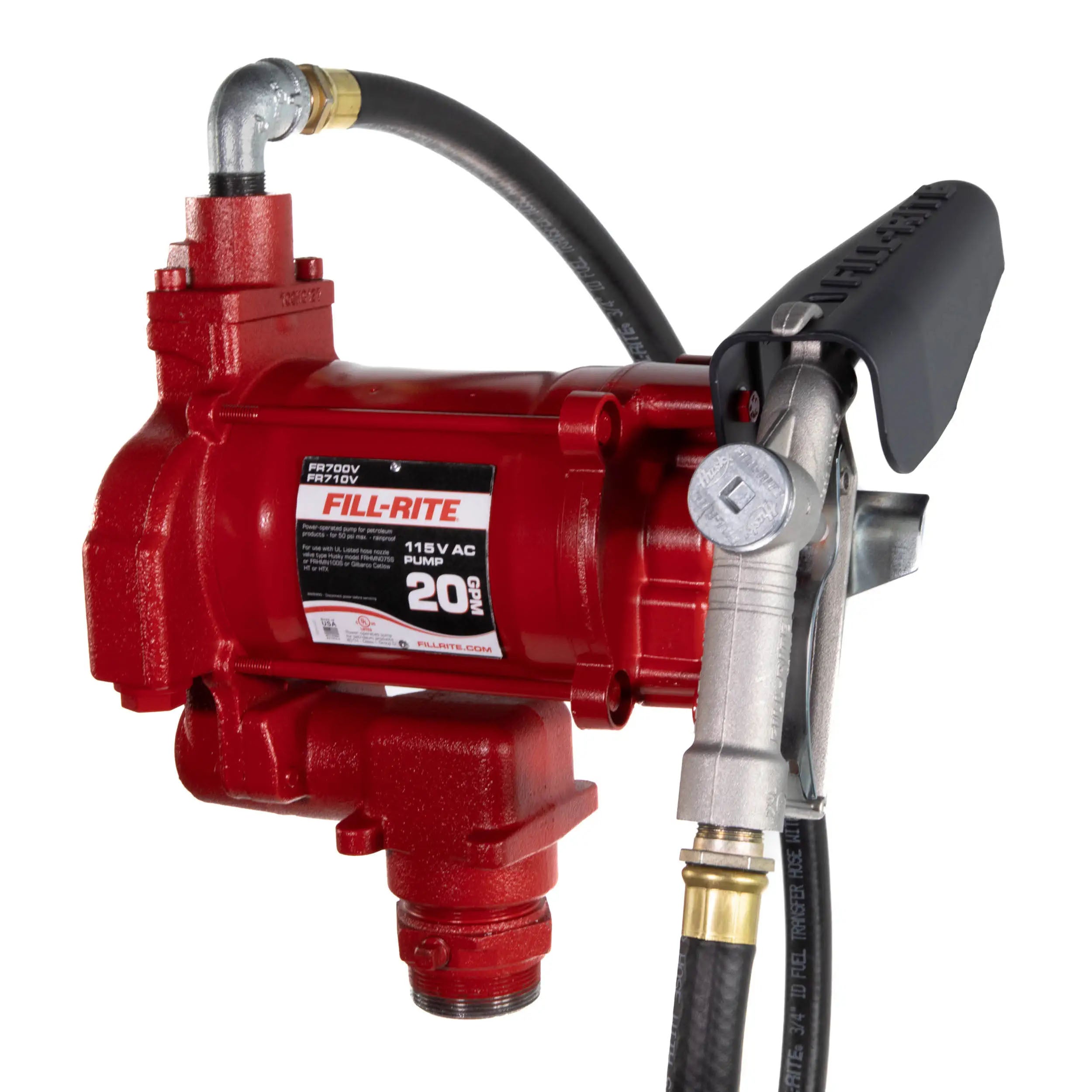

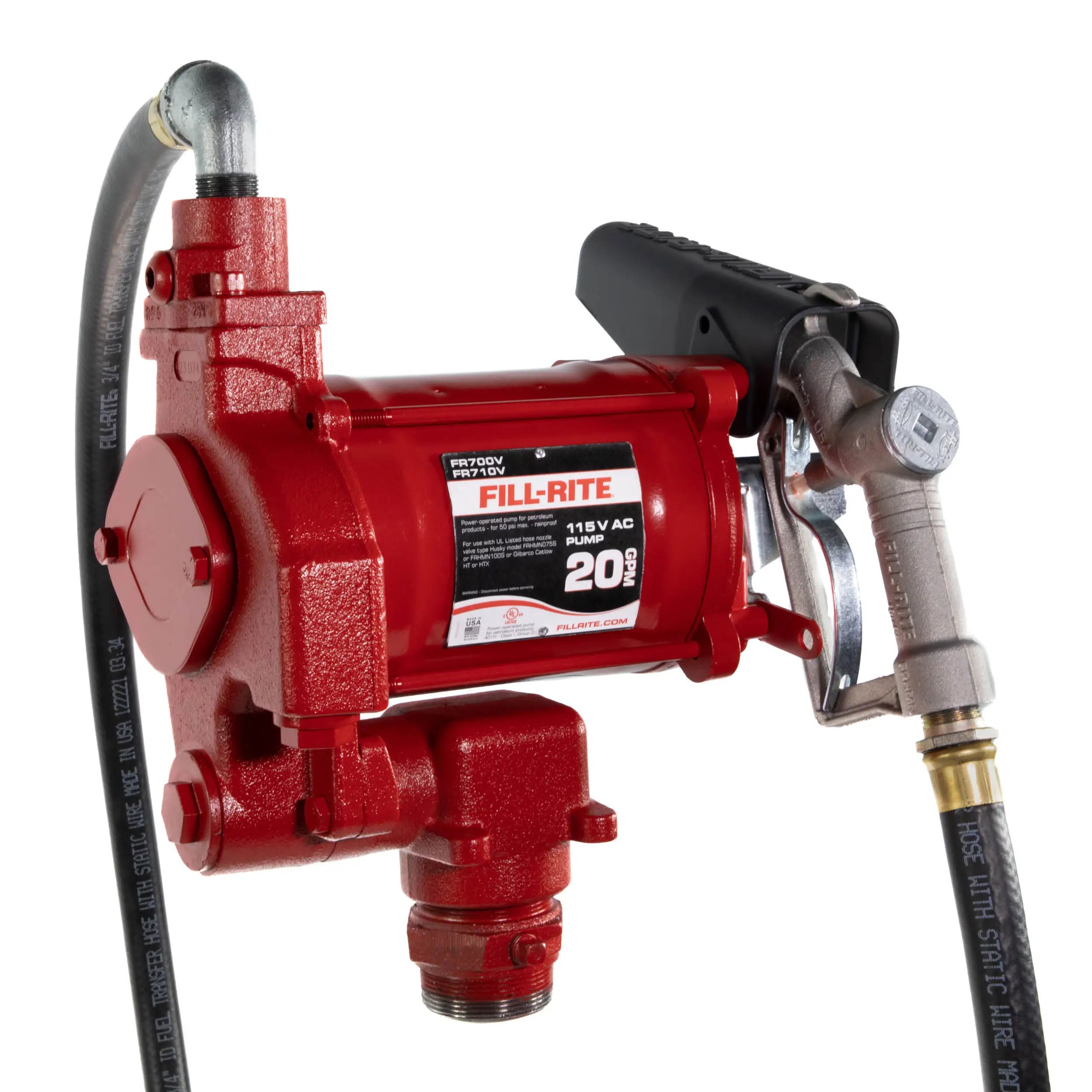

FR700V Fill-Rite 115V AC 20 GPM Fuel Transfer Pump with Hose and Nozzle

FR700V Fill-Rite 115V AC 20 GPM Fuel Transfer Pump with Hose and Nozzle

$791.00
$791.00
Oferta Agotado
  • Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling large equipment with fuel tanks sized at 20-80 gallons
  • Stationary Tanks — powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks
  • Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
  • Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
  • Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
  • Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment

Specifications:

Max Flowrate 20 GPM / 75 LPM
Power Type 115V AC
Compatible Fluids Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents
Inlet Size / Connection / Thread 1.25 " / Female / NPT
Outlet Size / Connection / Thread 0.75 " / Female / NPT
Mounting Size / Thread / Type 2" / NPT / Bung Mount
Duty Cycle (min) 30 min on / 30 min off
Power Source Electrical
Motor Power (HP) 0.33
Max Current (A) 5.5 A
Thermal Protection Switch Yes
Self Priming Yes
Suction Lift (ft.) 15 '
Dry Vacuum (in. Hg) 12
Operating Temperature Range (°F) -13 to 150°F
Discharge Head (ft) 53 '
Strainer Mesh Size (Micron) 40 x 40 x .010"
Max Discharge Pressure (PSI) 23 PSI
Viscosity Range (cSt) 0.5 - 5.5
