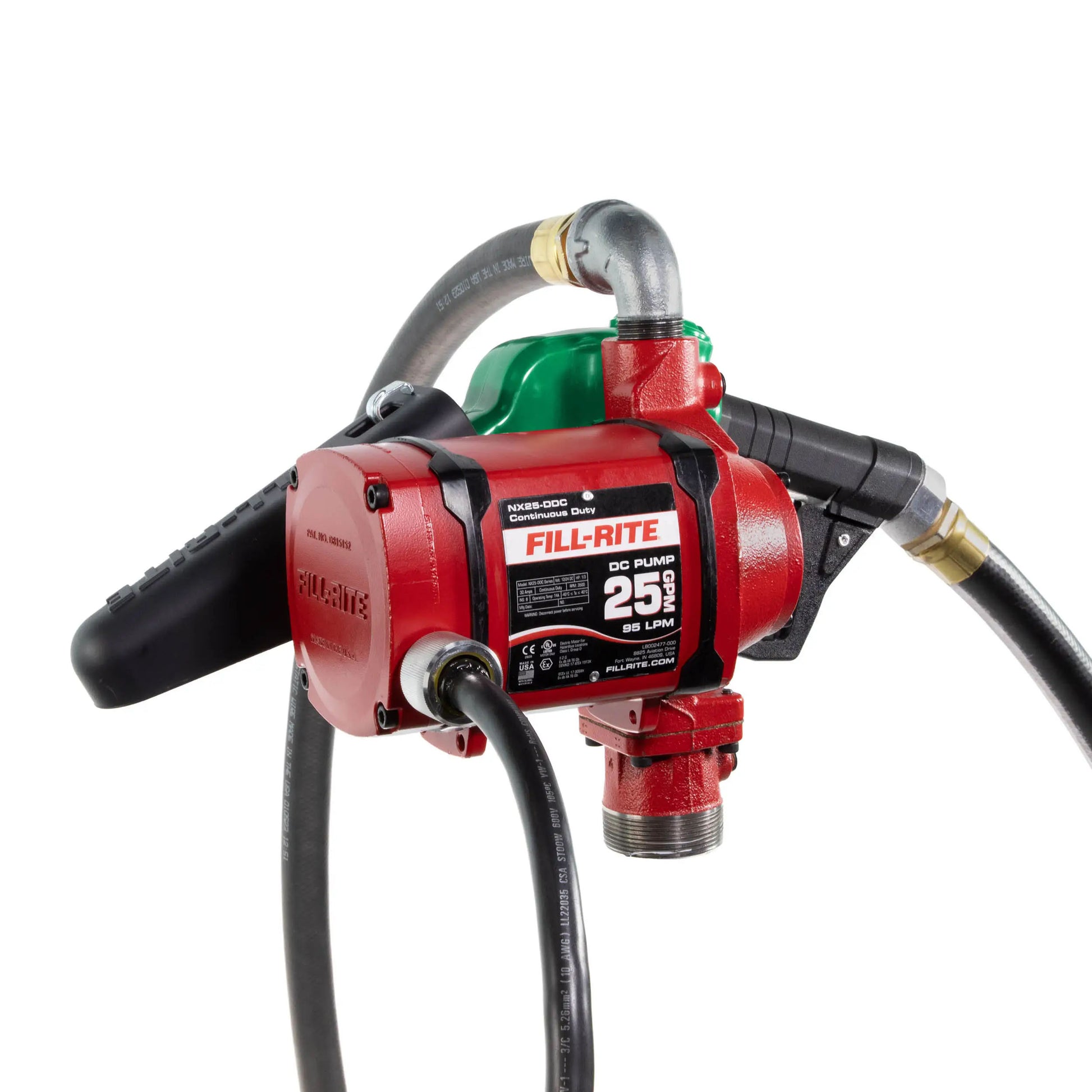

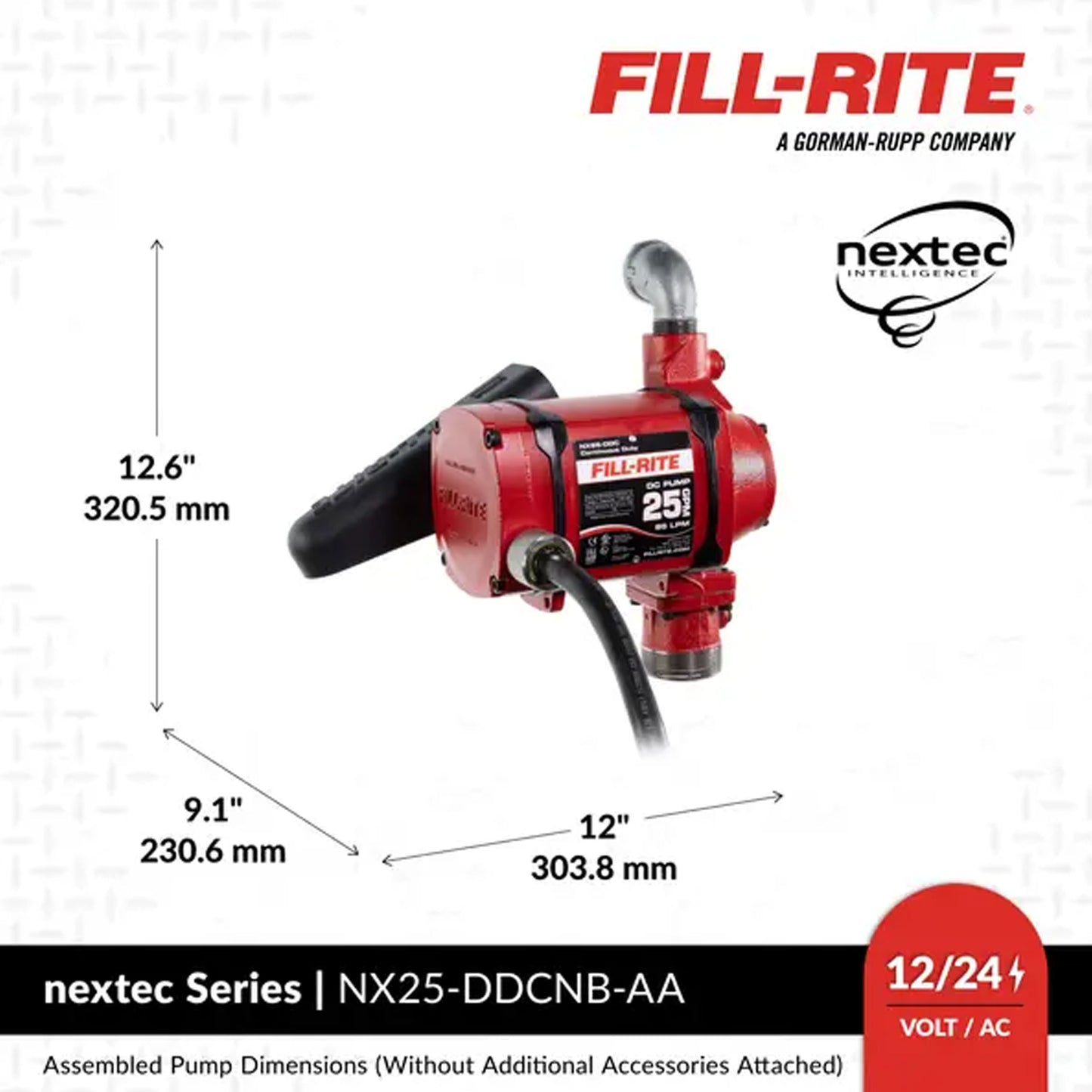

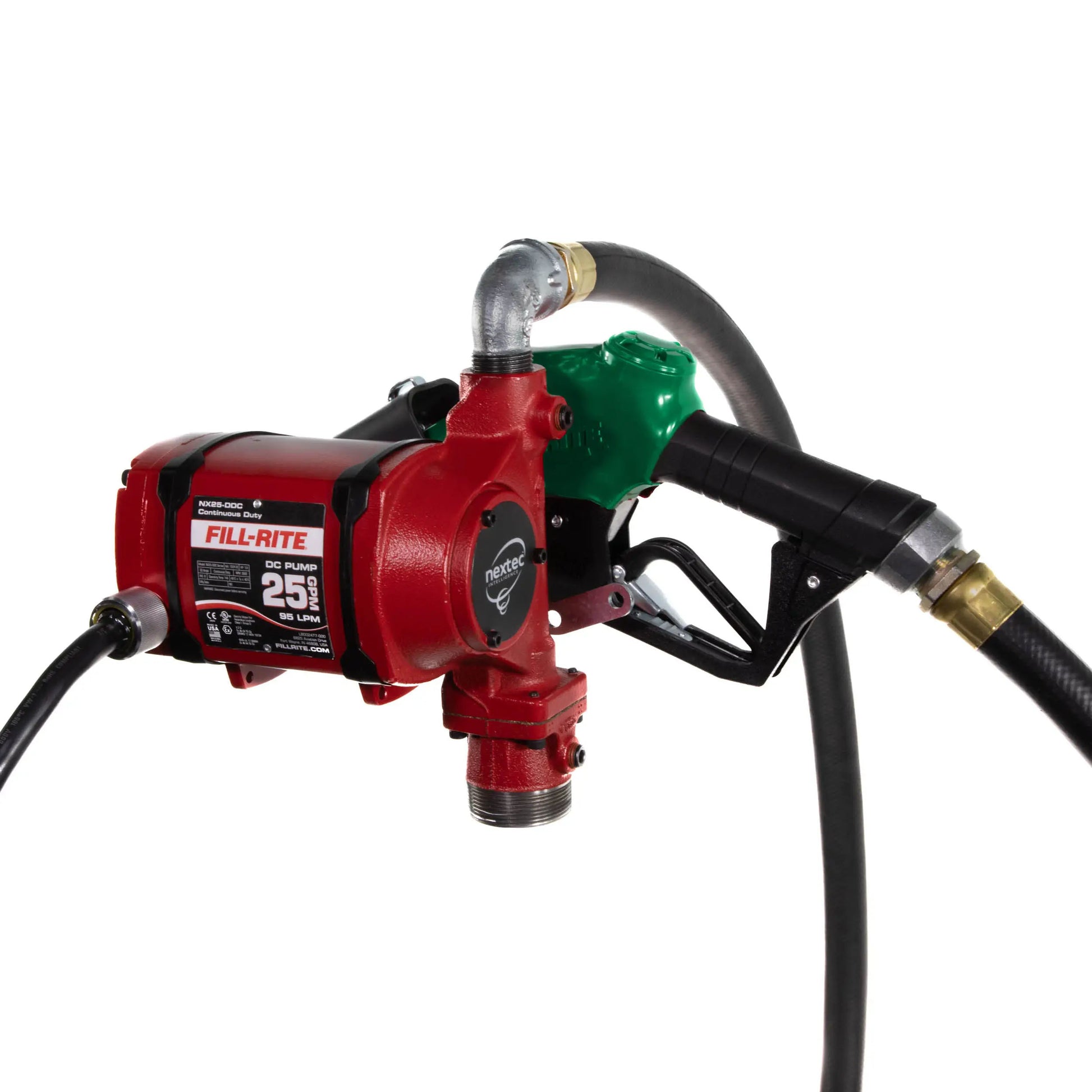

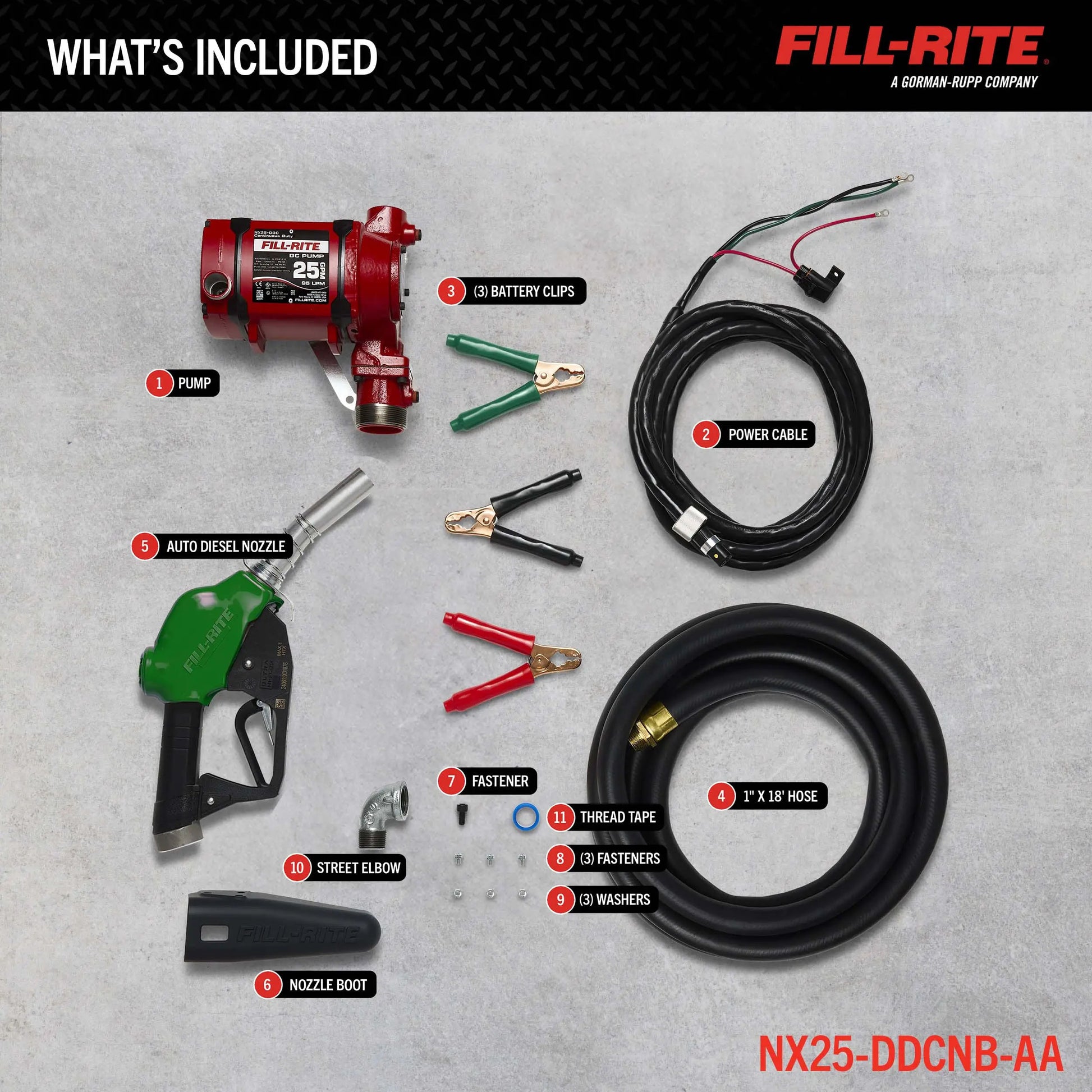

NX25-DDCNB-AA Fill-Rite 12/24V DC 25 GPM Fuel Transfer Pump with Nozzle
NX25-DDCNB-AA Fill-Rite 12/24V DC 25 GPM Fuel Transfer Pump with Nozzle
Precio habitual
$1,419.00
Precio habitual
Precio de oferta
$1,419.00
Cantidad
No se pudo cargar la disponibilidad de retiro
- Unmatched Performance — Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment
- Continuous Operation — brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime
- Flexible Power Input — dual voltage design allows you to power from 12-24V DC batteries without worrying of burning up the motor
- Energy Efficient — Consumes up to 45% less electricity, slashing operating costs and boosting efficiency
- Ultra-Lightweight — pump weighs 60% less at only 25 pounds, making installation faster and strain free
- Reduced Maintenance Costs — 75% reduction in common field repair costs through patented design and robust construction
- Powder-Coated Exterior — thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions
- Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
- Fluid Compatibility — designed for daily use with diesel, gasoline, ethanol blends up to E15, kerosene, mineral spirits, methanol up to 15%, and biodiesel blends up to B20
Specifications:
| Max Flowrate | 25 GPM / 94 LPM |
|---|---|
| Power Type | 12V/24V DC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1.25 " / Male / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | Continuous Duty |
| Power Source | Electrical |
| Motor Power (HP) | 0.33 |
| Max Current (A) | 30 A |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 12 ' |
| Dry Vacuum (in. Hg) | 11 |
| Operating Temperature Range (°F) | -40 to 125°F |
| Discharge Head (ft) | 48 ' |
| Strainer Mesh Size (Micron) | 20 x 20 x .008” |
| Max Operating Pressure (PSI) | 25 |
| Viscosity Range (cSt) | -- |
| Fuse Size (A) | 30 |
