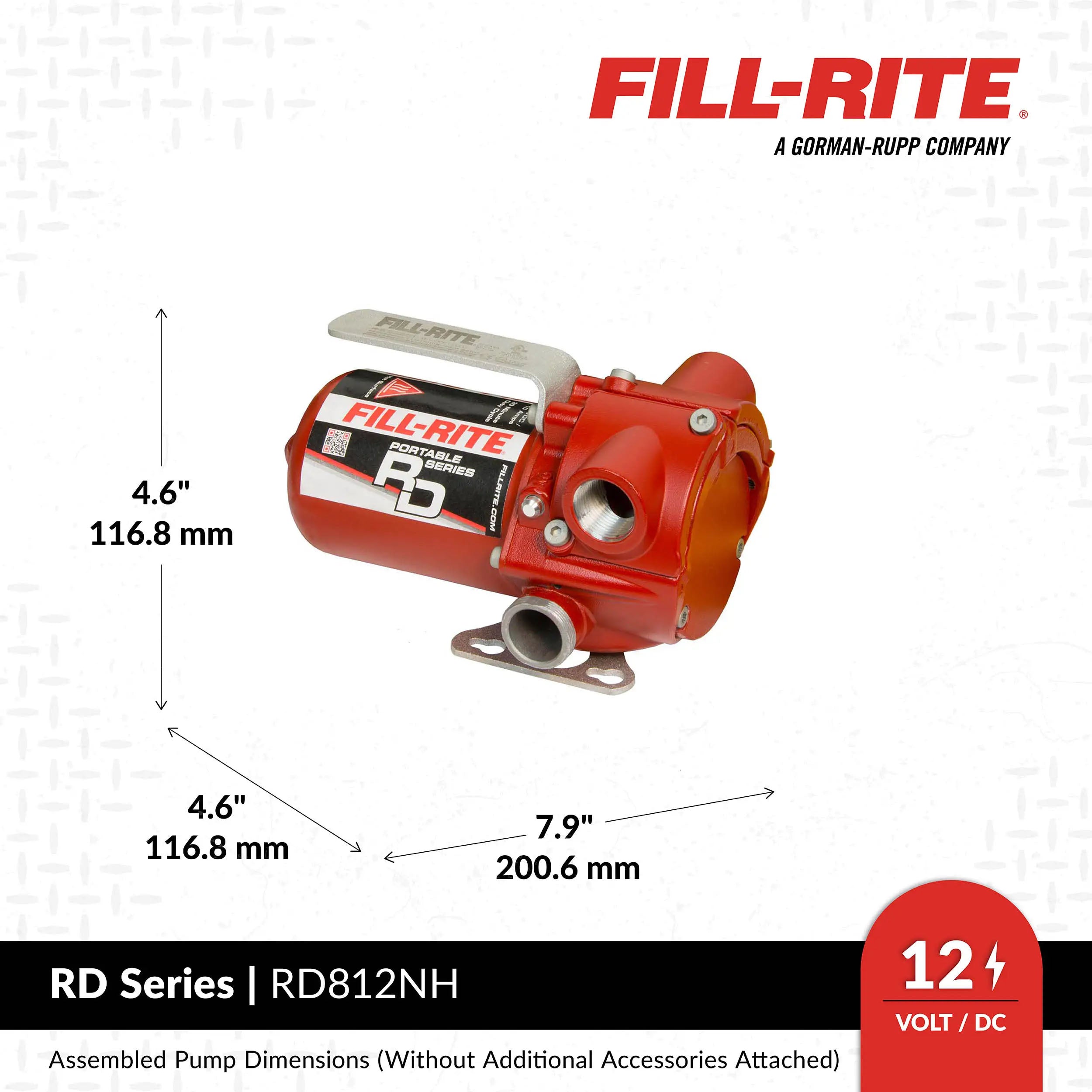

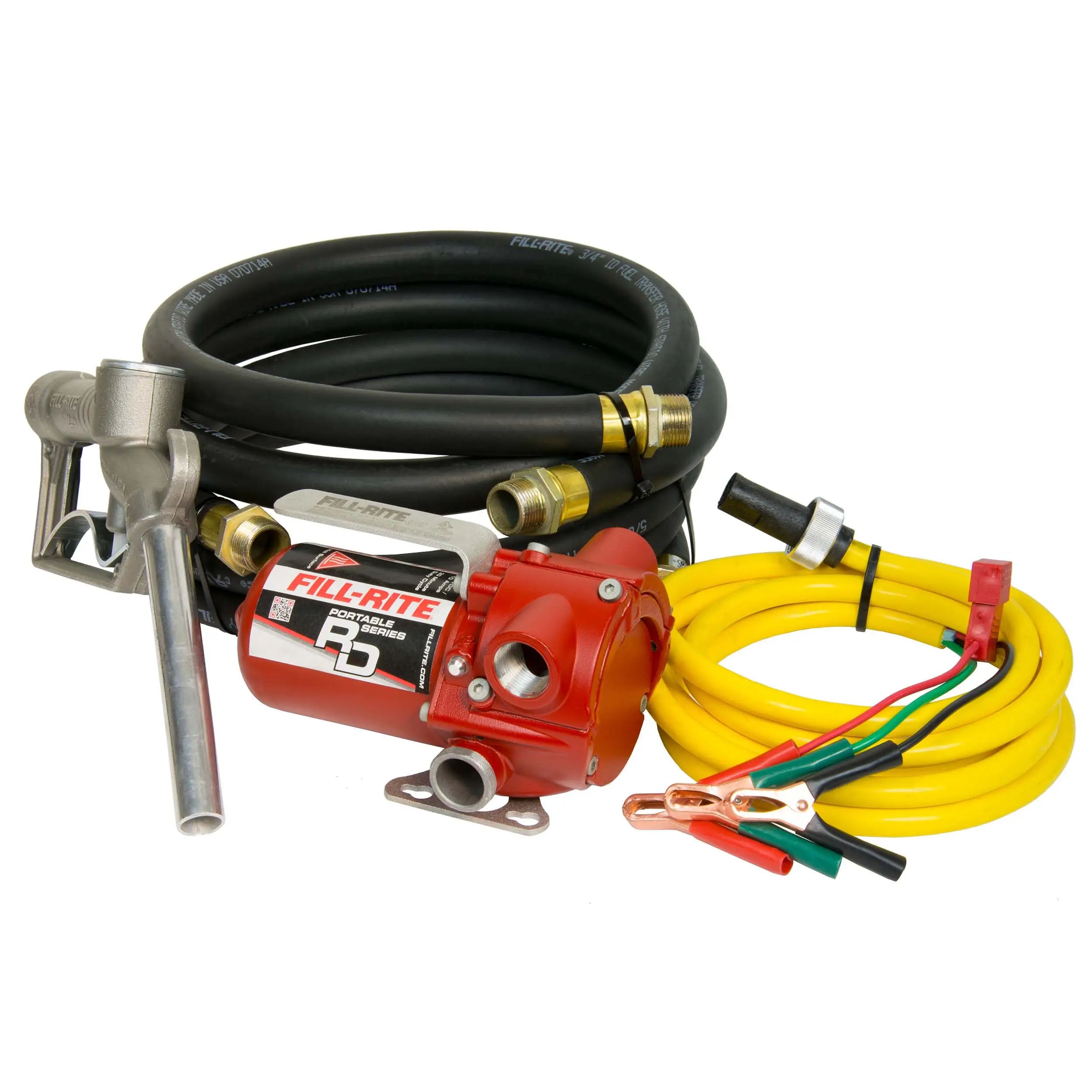

RD812NH Fill-Rite 12V DC 8 GPM Fuel Transfer Pump with Nozzle
RD812NH Fill-Rite 12V DC 8 GPM Fuel Transfer Pump with Nozzle
No se pudo cargar la disponibilidad de retiro
-
Powder-Coated Exterior – thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions
-
Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
-
Completely Configurable – adjustable design allows you to position inlet and outlet flanges for your specific application, making the RD perfect for tight spaces
-
Versatile Mounting – versatile design allows you to mount pump directly to a tank, set it on the ground, or even hold it during filling
-
Quick-Connect Power – detachable power cord makes operation, transportation, and storage more convenient, while also providing additional security measure
-
Compact Size – weighing under 8 pounds, can be easily transported or held during operation
Specifications:
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Biodiesel up to B20, Mineral Spirits |
| Inlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | -- / -- / Portable Carry Handle |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.17 |
| Max Current (A) | 14 A |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 6 ' |
| Dry Vacuum (in. Hg) | 5 |
| Operating Temperature Range (°F) | -17 to 105°F |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Operating Pressure (PSI) | 16 |
| Viscosity Range (cSt) | -- |
| Fuse Size (A) | -- |
