Sotera SS465BX713 Chemtraveller® Chemical Transfer System – 115V AC

Built with Santoprene diaphragms and EPDM seals, this Sotera model is ideal for transferring water-based fluids and select mild acids.

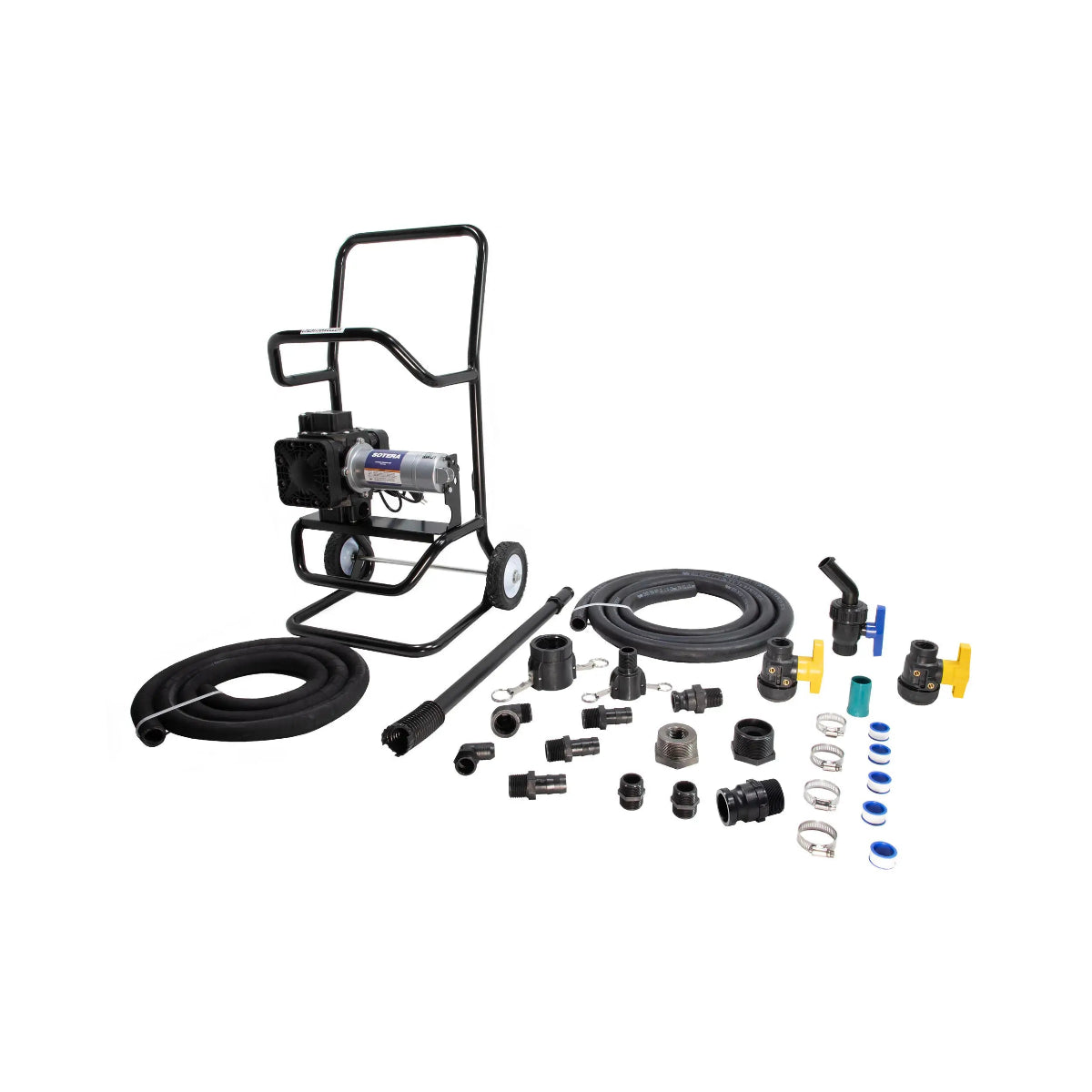

The SS465BX713 is a 115V AC Chemtraveller® Chemical Transfer System. This package includes a portable Chemtraveller® cart, polypropylene nozzle, Norwesco® anti-drip nozzle tip, and additional chemical transfer accessories.

Features

• Consistent, Reliable Performance – Designed with dual-diaphragm technology, the Sotera 400 Series maintains constant outlet pressure regardless of load conditions.

• Fluid Compatibility – Santoprene diaphragms are compatible with a wide variety of fluids, including agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water.

• Durable Design – The pump can run dry without causing internal damage, providing peace of mind and long-term reliability.

• Extended Service Life – A thermally protected motor prevents overheating and helps maximize equipment lifespan.

• Convenient Configurations – Available in multiple application-specific configurations, including Portable Chemtraveller®, Recirculating Mix-N-Go, Mobile Pump-N-Go, Heavy-Duty IBC Tote Stand, Steel Drum Mount, and Straight Plastic Flange Mount.

• 5-Year Warranty – Backed by a comprehensive 5-Year Warranty to protect your investment and business operations.

Performance Specifications

• Maximum Flow Rate: 13 GPM

• Power Type: 115V AC

• Inlet Connection: 1" NPT

• Outlet Connection: 1" NPT

• Mount Type: Chemtraveller® Portable Cart

• Duty Cycle: 30 Minutes ON / 30 Minutes OFF

• Motor Power: 0.25 HP

• Suction Lift: 9 ft

• Maximum Operating Pressure: 15 PSI

• Discharge Head: 38 ft

• Maximum Current Draw: 2.5 A

Dimensions

• Product Dimensions (H × W × D): 33.0" × 19.9" × 15.2"

• Product Weight: 29.6 lbs

• Package Dimensions (H × W × D): 15.0" × 33.88" × 17.0"

• Gross Weight: 52.6 lbs

Built for Demanding Applications

Sotera products are engineered to provide dependable fluid transfer performance in agricultural, industrial, and commercial environments. Designed for durability, ease of use, and long-term reliability, the Chemtraveller® system offers a portable solution for safely handling a wide range of compatible fluids.
