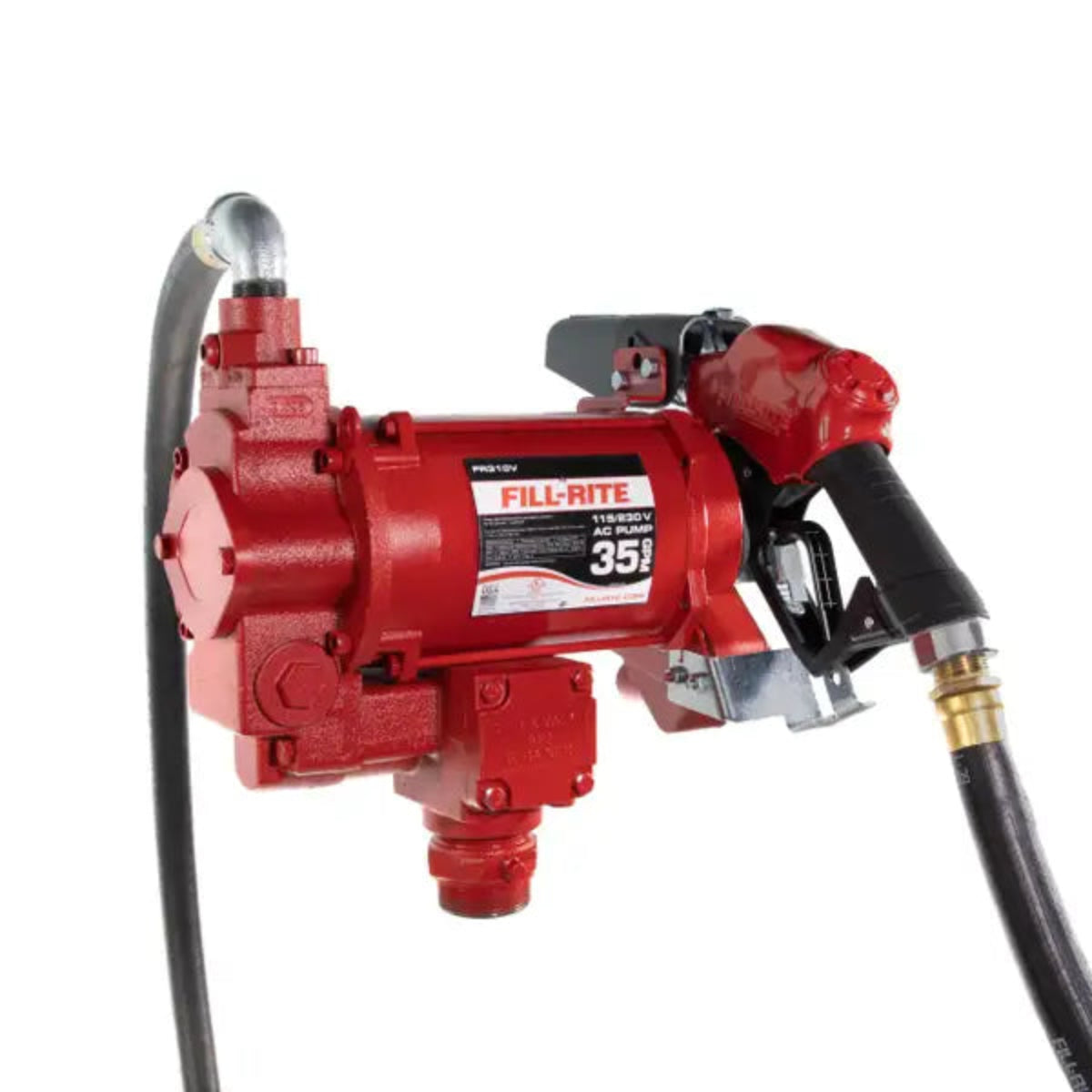

Fill-Rite FR310VB 35 GPM Heavy-Duty Fuel Transfer Pump

The Fill-Rite FR310VB is a heavy-duty AC fuel transfer pump engineered for high-volume fuel dispensing applications. Built with rugged cast iron construction and powered by a dual-voltage 115V/230V AC motor, this pump delivers up to 35 GPM and is ideal for stationary fuel storage tanks, fleet fueling, agricultural operations, and construction sites.

Designed with Fill-Rite’s proven rotary vane technology, the FR310VB maintains reliable flow performance throughout its service life while providing exceptional durability in demanding environments.

Features

• Heavy-Duty Cast Iron Construction – Built to withstand harsh jobsite and industrial environments while providing long service life.

• High-Flow Performance – Delivers up to 35 GPM (132 LPM), ideal for fueling larger equipment with tanks ranging from 35 to 140 gallons.

• Dual-Voltage Motor – Easily configurable for either 115V AC or 230V AC operation via a simple voltage selection switch.

• Stationary Tank Installation – Designed for above-ground fuel storage tanks with a 2" NPT bung mount.

• Reliable Rotary Vane Technology – Maintains consistent performance throughout the life of the pump.

• Thermal Motor Protection – Helps prevent overheating and extends motor life.

• Integrated Strainer Protection – Internal strainer filters fuel contaminants before they reach equipment.

• Lifetime Limited Warranty – Backed by Fill-Rite’s industry-leading limited lifetime warranty.

Performance Specifications

• Model: FR310VB

• Maximum Flow Rate: 35 GPM (132 LPM)

• Power Type: 115V / 230V AC

• Motor Power: 0.75 HP

• Duty Cycle: 30 Minutes On / 30 Minutes Off

• Inlet Connection: 1-1/4" Female NPT

• Outlet Connection: 1" Female NPT

• Mounting Type: 2" NPT Bung Mount

• Suction Lift: 18 ft

• Dry Vacuum: 14 in. Hg

• Discharge Head: 60 ft

• Maximum Discharge Pressure: 26 PSI

• Strainer Mesh Size: 40 x 40 x .008"

• Ground Wire: Included

• Cable Length: 1 ft

• Cable Gauge: 14 AWG

• Cable Connection: Bare Leads

Compatible Fluids

• Diesel Fuel

• Kerosene

• Biodiesel Blends up to B20

Included Components

• 1" x 18' UL Listed Fuel Hose with Static Ground Wire

• 1" Ultra Hi-Flow Automatic Fuel Nozzle (Red)

• Ground Wire

• Installation Components

Benefits

• Fast High-Volume Fuel Transfer

• Reliable Long-Term Performance

• Dual Voltage Installation Flexibility

• Heavy-Duty Commercial Construction

• Reduced Equipment Downtime

• Internal Fuel Filtration Protection

• Ideal for Large Fuel Storage Systems

• Low Lifetime Ownership Cost

Applications

• Above-Ground Fuel Storage Tanks

• Fleet Fueling Facilities

• Agricultural Operations

• Construction Equipment

• Mining Equipment

• Commercial Fuel Transfer Systems

• Industrial Fuel Storage Installations

• Heavy Equipment Refueling

Built for Reliability

The Fill-Rite FR310VB combines heavy-duty cast iron construction, proven rotary vane technology, and high-flow performance to deliver dependable fuel transfer in demanding commercial environments. Designed for years of service, it provides reliable fueling performance while protecting both the pump and connected equipment.

Dimensions

• Product Dimensions (H × W × D): 17.4" × 17.0" × 14.8"

• Product Weight: 81.8 lbs

• Package Dimensions (H × W × D): 12.25" × 22.31" × 19.75"

• Gross Weight: 87.5 lbs
