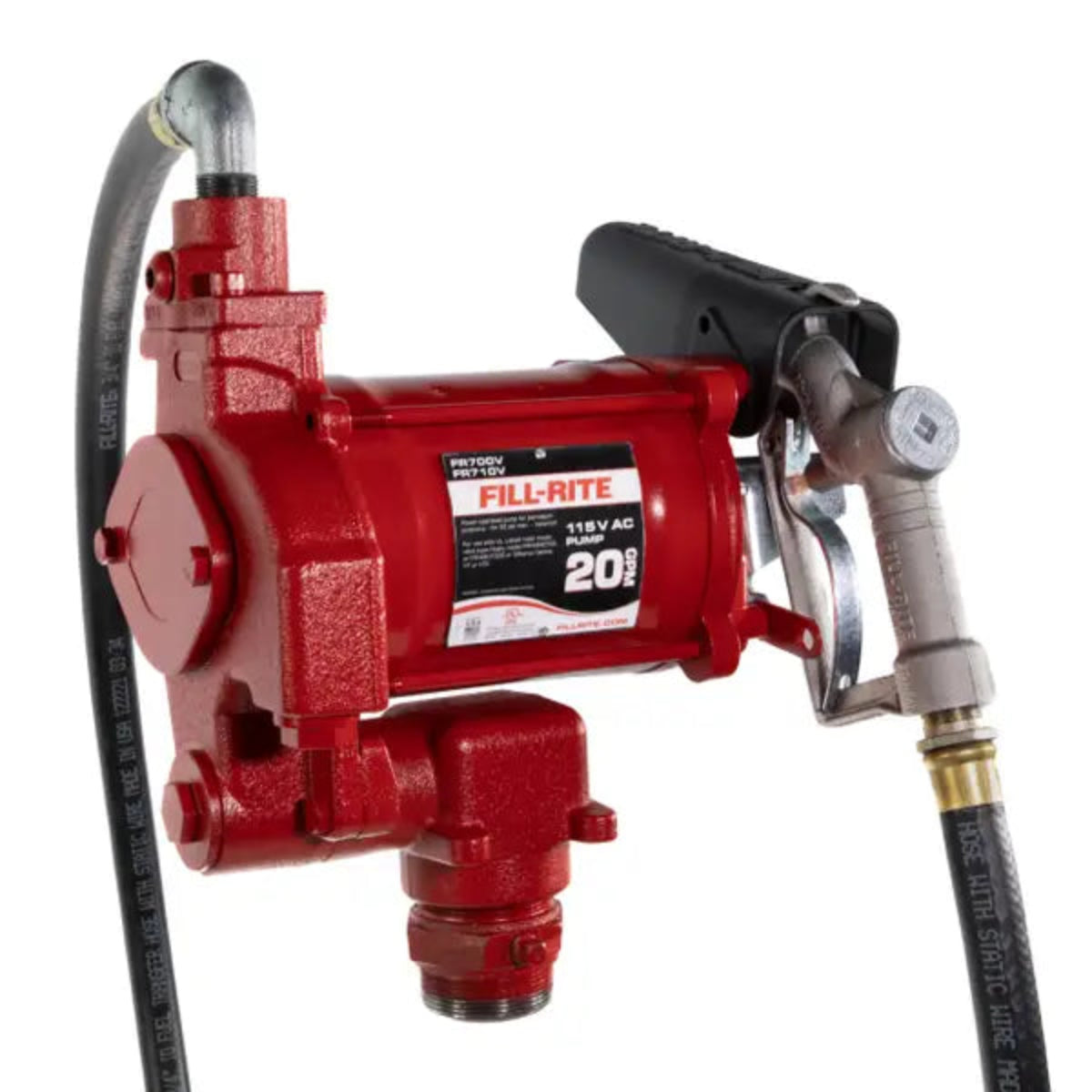

Fill-Rite FR700V 20 GPM Heavy-Duty Fuel Transfer Pump

The Fill-Rite FR700V is a heavy-duty 115V AC fuel transfer pump engineered for reliable fuel dispensing in commercial, agricultural, industrial, and fleet fueling applications. Built with rugged cast iron construction and proven rotary vane technology, this pump delivers up to 20 GPM while maintaining consistent performance throughout its service life.

Designed for stationary above-ground fuel tanks, the FR700V combines durability, fuel compatibility, and long-term reliability in a compact, professional-grade package.

Features

• Heavy-Duty Cast Iron Construction – Built to withstand demanding jobsite, agricultural, and industrial environments.

• Reliable High-Flow Performance – Delivers up to 20 GPM (75 LPM), ideal for fueling equipment with 20 to 80-gallon fuel tanks.

• 115V AC Operation – Connects directly to standard electrical service for stationary fueling installations.

• Rotary Vane Technology – Maintains consistent flow performance throughout the life of the pump.

• Thermal Motor Protection – Helps prevent overheating and extends pump life.

• Integrated Strainer Protection – Built-in strainer helps prevent contaminants from entering equipment fuel systems.

• Lifetime Limited Warranty – Backed by Fill-Rite’s industry-leading limited lifetime warranty.

• Broad Fuel Compatibility – Suitable for diesel, gasoline, kerosene, biodiesel blends, and various petroleum-based fluids.

Performance Specifications

• Model: FR700V

• Maximum Flow Rate: 20 GPM (75 LPM)

• Power Type: 115V AC

• Motor Power: 0.33 HP

• Maximum Current Draw: 5.5 A

• Duty Cycle: 30 Minutes On / 30 Minutes Off

• Inlet Connection: 1-1/4" Female NPT

• Outlet Connection: 3/4" Female NPT

• Mounting Type: 2" NPT Bung Mount

• Suction Lift: 15 ft

• Dry Vacuum: 12 in. Hg

• Discharge Head: 53 ft

• Maximum Discharge Pressure: 23 PSI

• Strainer Mesh Size: 40 x 40 x .010"

• Cable Connection: Hard-Wired

• Viscosity Range: 0.38 – 2.4 cSt

Compatible Fluids

• Diesel Fuel

• Gasoline up to E15

• Kerosene

• Biodiesel up to B20

• Mineral Spirits

• Heptane

• Stoddard Solvents

Included Components

• 3/4" x 12' UL Listed Fuel Hose with Static Ground Wire

• 3/4" Cast Aluminum Fuel Nozzle

• Installation Components

Benefits

• Reliable Commercial-Grade Performance

• Long Service Life

• Excellent Fuel Compatibility

• Reduced Equipment Downtime

• Easy Stationary Tank Installation

• Built-In Fuel Contaminant Protection

• Consistent Flow Throughout Pump Life

• Low Maintenance Operation

Applications

• Above-Ground Fuel Storage Tanks

• Fleet Fueling Systems

• Agricultural Equipment

• Construction Equipment

• Service Facilities

• Commercial Fuel Storage

• Industrial Fuel Transfer Systems

• Maintenance Operations

Built for Reliability

The Fill-Rite FR700V is designed to provide dependable fuel transfer performance year after year. Its heavy-duty cast iron construction, proven rotary vane technology, and integrated protection features make it an ideal solution for users who require reliable fueling performance in demanding environments.

Dimensions

• Product Dimensions (H × W × D): 17.3" × 14.2" × 11.3"

• Product Weight: 48.8 lbs

• Package Dimensions (H × W × D): 10.25" × 20.56" × 19.56"

• Gross Weight: 57.4 lbs
