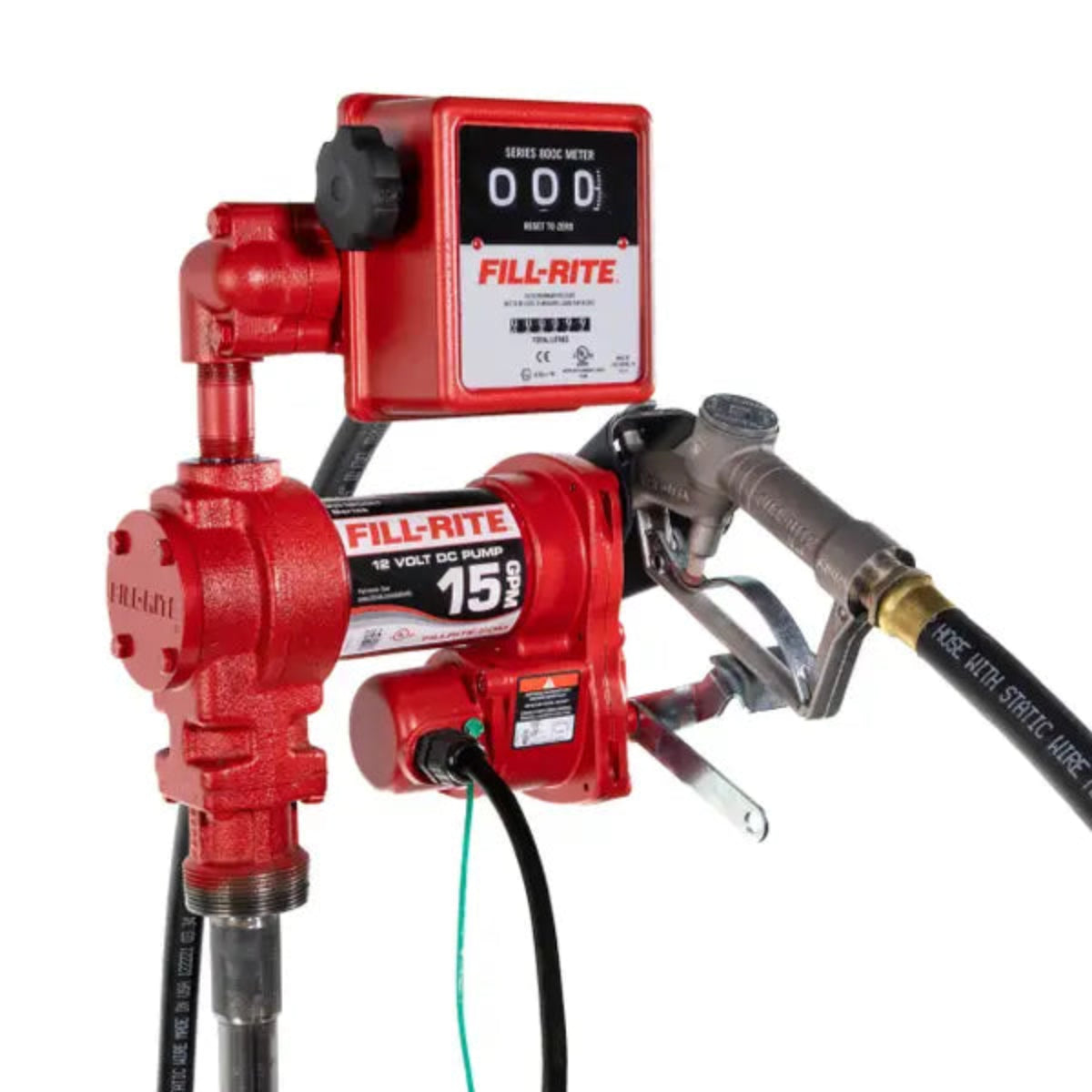

Fill-Rite FR1211HL 12V DC Fuel Transfer Pump with Mechanical Meter

The Fill-Rite FR1211HL is a heavy-duty 12V DC fuel transfer pump designed for mobile fuel transfer applications. Built with rugged cast iron construction and proven rotary vane technology, this pump delivers up to 15 GPM (57 LPM) while providing reliable performance in demanding agricultural, construction, fleet, and service truck environments.

This complete package includes a mechanical meter, discharge hose, manual nozzle, telescoping suction pipe, and installation components, making it a ready-to-install fueling solution for transfer tanks and mobile fueling systems.

Features

• Heavy-Duty Cast Iron Construction – Built to withstand harsh field conditions and demanding daily use.

• Reliable Rotary Vane Technology – Provides consistent flow rates and dependable long-term performance.

• High Flow Performance – Delivers up to 15 GPM (57 LPM), ideal for equipment with fuel tanks ranging from 15 to 60 gallons.

• 12V DC Operation – Designed for direct connection to 12-volt battery systems.

• Mobile Tank Installation – Equipped with a standard 2" NPT bung mount for transfer tanks and truck-mounted fuel systems.

• 180° Rotating Junction Box – Simplifies wiring and installation in tight spaces.

• Thermal Motor Protection – Prevents overheating and helps extend pump life.

• Integrated Strainer Protection – Filters contaminants before they reach equipment fuel systems.

• Heavy-Duty On/Off Switch – Features a reinforced metal stop arm for long service life.

• Lifetime Limited Warranty – Backed by Fill-Rite's industry-leading limited lifetime warranty.

Performance Specifications

• Model: FR1211HL

• Maximum Flow Rate: 15 GPM (57 LPM)

• Power Type: 12V DC

• Motor Power: 0.25 HP

• Maximum Current Draw: 20 A

• Duty Cycle: 30 Minutes On / 30 Minutes Off

• Inlet Connection: 1" Female NPT

• Outlet Connection: 3/4" Female NPT

• Mounting Type: 2" NPT Bung Mount

• Self-Priming: Yes

• Thermal Protection: Yes

• Suction Lift: 8 ft

• Dry Vacuum: 5 in. Hg

• Discharge Head: 37 ft

• Maximum Operating Pressure: 16 PSI

• Strainer Mesh Size: 20 x 20 Micron

• Viscosity Range: 1 – 4 cSt

Meter Specifications

• Meter Model: 807CL Mechanical Meter

• Display Type: Mechanical

• Display Digits: 3

• Accuracy: ±1%

• Repeatability: ±0.38%

• Measurement Units: Liters

Compatible Fluids

• Diesel Fuel

• Gasoline up to E15

• Biodiesel up to B20

• Kerosene

• Mineral Spirits

Included Components

• 807CL Mechanical Meter (Liters)

• 20" – 34.5" Steel Telescoping Suction Pipe

• 3/4" x 12' Fuel Hose with Static Ground Wire

• 3/4" Cast Aluminum Manual Nozzle

• 18' Power Cable

• Ground Wire

• Static Ground Wire

• Installation Hardware

Electrical Specifications

• Cable Length: 18 ft

• Cable Gauge: 12 AWG

• Cable Connection: Bare Leads

• Ground Wire Included: Yes

• Static Ground Wire Included: Yes

Benefits

• Complete Ready-to-Install Fuel Transfer Package

• Accurate Fuel Tracking with Mechanical Meter

• Excellent Durability for Mobile Applications

• Reliable Self-Priming Operation

• Easy Installation on Transfer Tanks

• Long Service Life with Minimal Maintenance

• Suitable for Fleet, Agricultural, and Construction Equipment

• Built-In Protection Against Fuel Contamination

Applications

• Mobile Fuel Transfer Tanks

• Service Trucks

• Construction Equipment

• Agricultural Equipment

• Fleet Maintenance

• Fuel Storage Systems

• Commercial Fueling Operations

• Off-Road Equipment

Built for Reliability

The Fill-Rite FR1211HL combines the proven durability of cast iron construction with accurate fuel metering and dependable rotary vane pump technology. Designed for demanding mobile fueling applications, it provides reliable fuel transfer performance while allowing operators to monitor fuel usage accurately through its integrated mechanical meter.

Dimensions

• Product Dimensions (H × W × D): 15.0" × 13.0" × 7.0"

• Product Weight: 23.7 lbs

• Package Dimensions (H × W × D): 10.0" × 21.81" × 19.81"

• Gross Weight: 37.0 lbs
