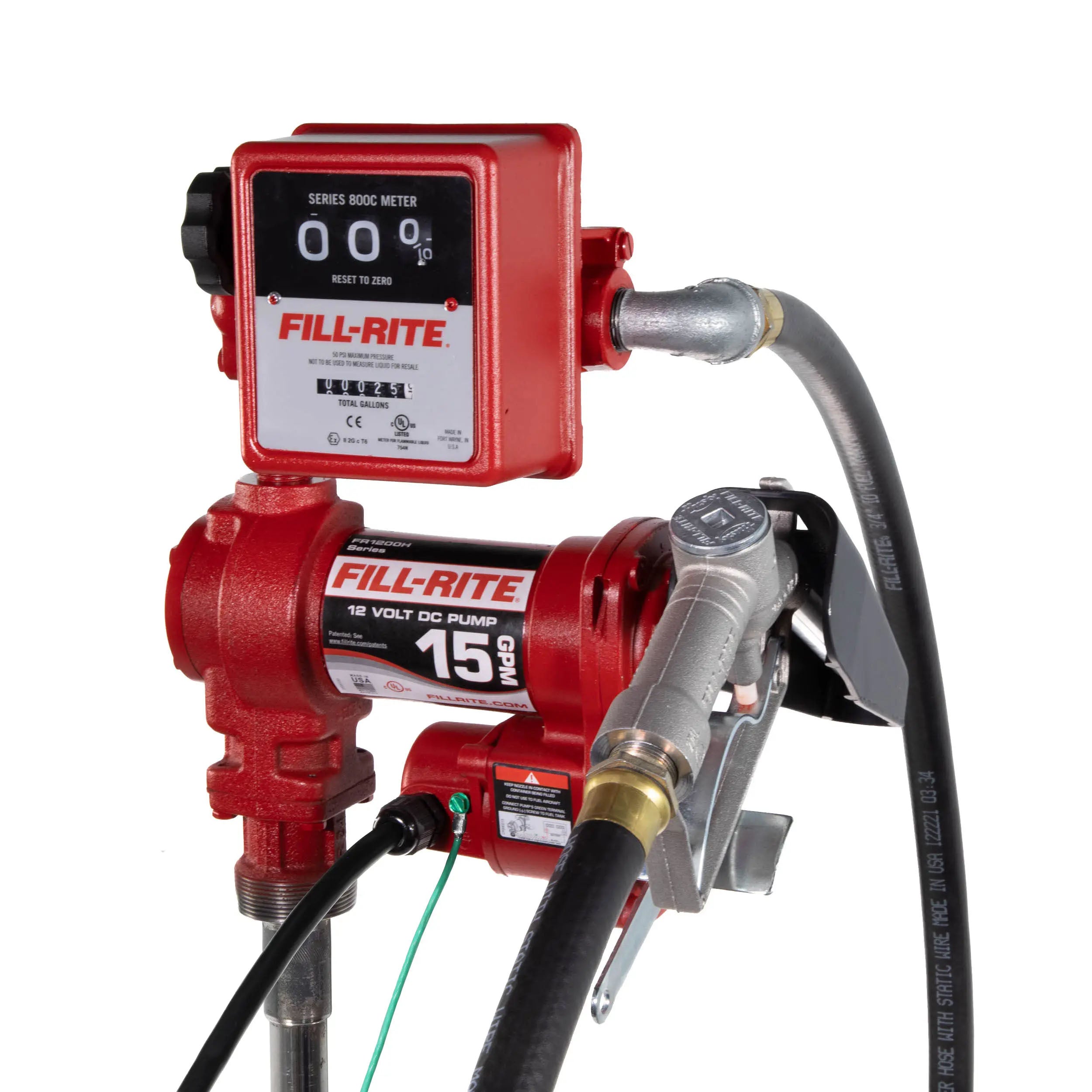

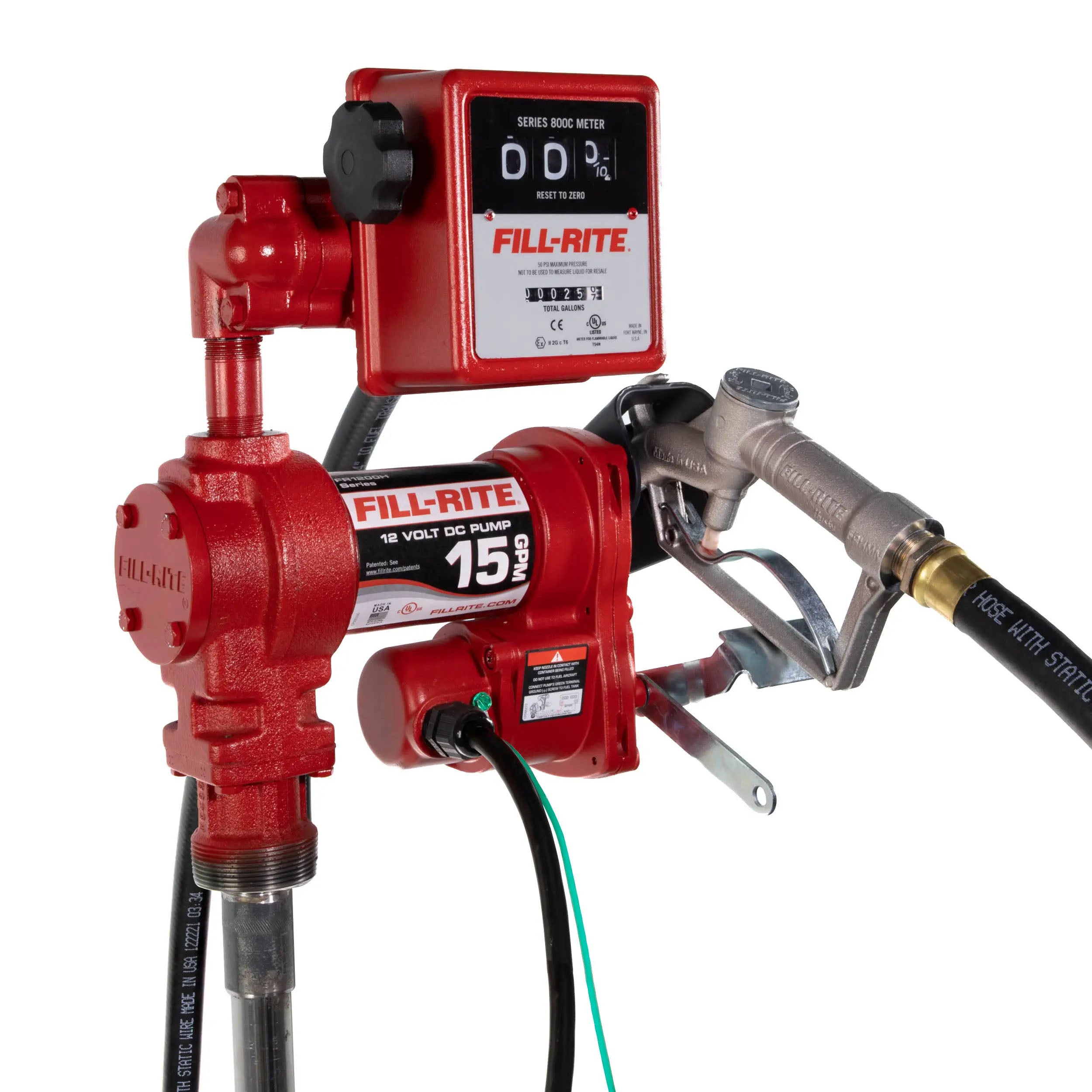

FR1211H Fill-Rite 12V DC 15 GPM Fuel Transfer Pump with Meter & Nozzle
-
Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
-
Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
-

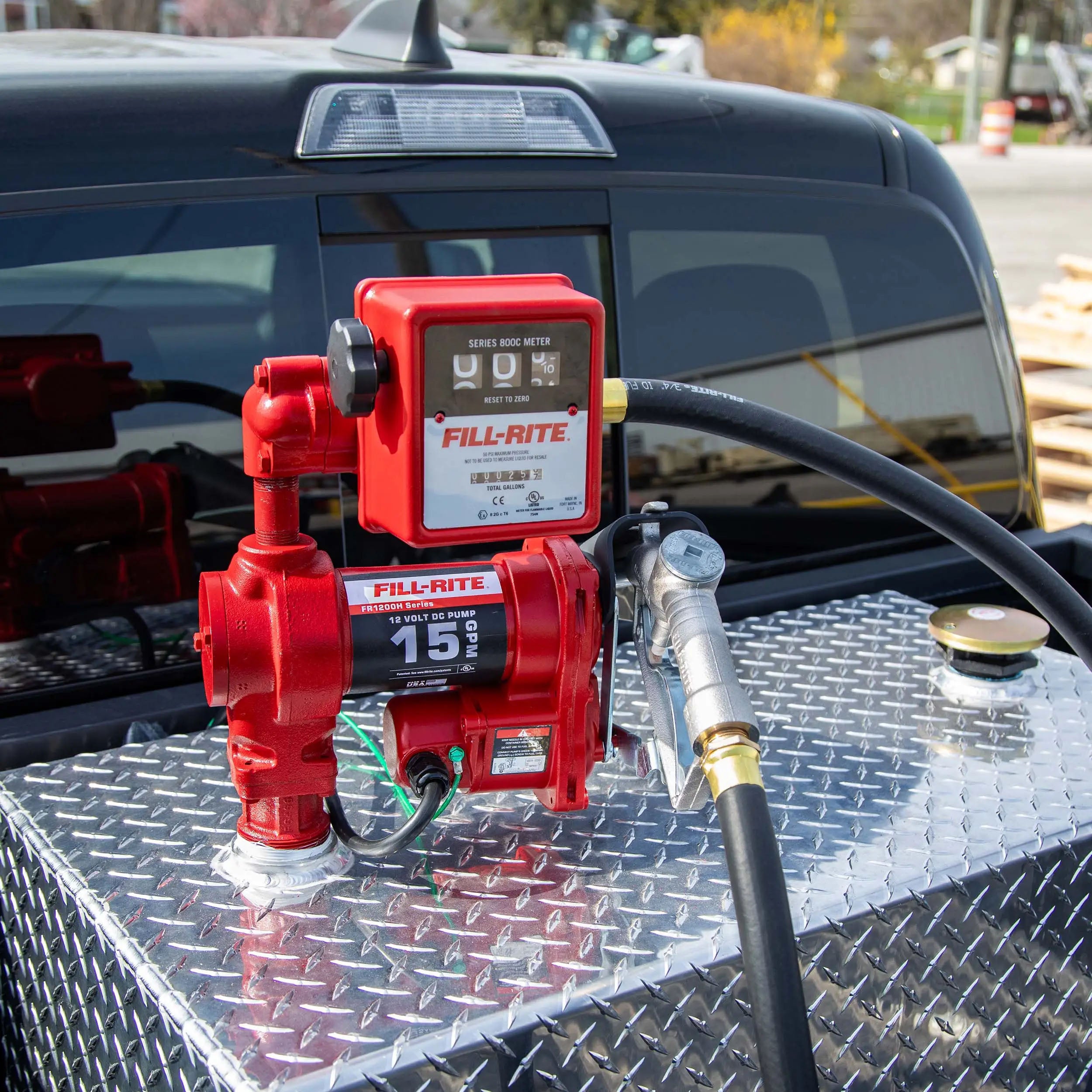

Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
-
Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
-
Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
-
Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
-
Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
-
Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
-
Limited Lifetime Warranty – we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment
Specifications:
| Max Flowrate | 15 GPM / 57 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.25 |
| Max Current (A) | 20 A |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Operating Temperature Range (°F) | -15 to 150°F |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Operating Pressure (PSI) | 16 |
| Viscosity Range (cSt) | 0.5 to 5.5 |
| Repeatability (+/- %) | 0.38 % |
| Pulse Rate | -- |
| Accuracy (+/- %) | 1 % |
| Display Digits | 3 |
| Display Type | Mechanical |
| Battery Quantity | -- |
| Battery Size | -- |
| Battery Type | -- |
| Batteries Included | -- |
| Batteries Required | -- |
